Martin 6 B 160 SF

B004BKI34K

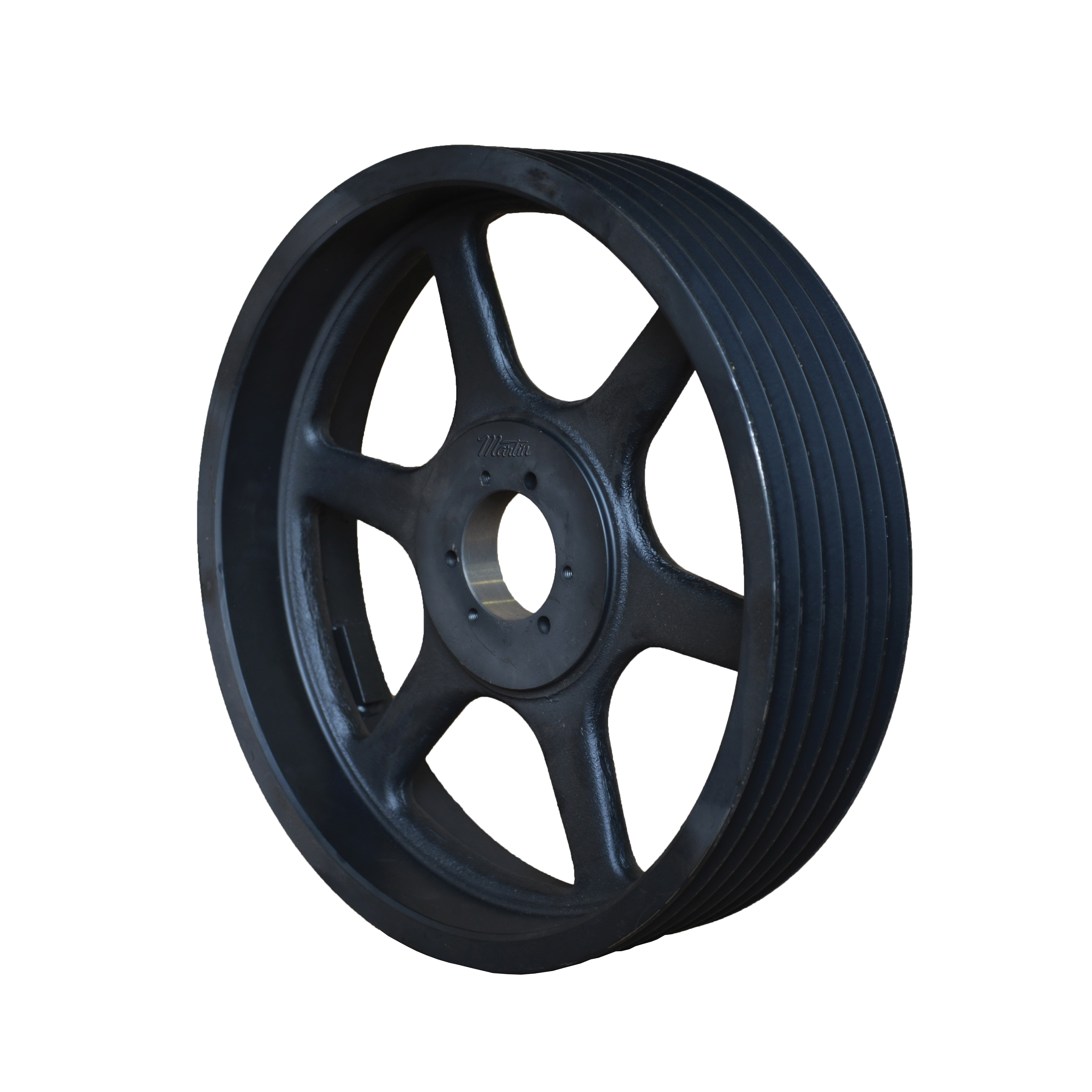

Martin 6 B 160 SF Conventional QD Sheave, A/B Belt Section, 6 Grooves, SF Bushing required, Class 30 Gray Cast Iron, 16.35" OD, 1517 max rpm, A - 15.6/B - 16" Pitch Diameter

Martin 6 B 160 SF Conventional QD Sheave, A/B Belt Section, 6 Grooves, SF Bushing required, Class 30 Gray Cast Iron, 16.35" OD, 1517 max rpm, A - 15.6/B - 16" Pitch Diameterzoom

Attributes

Key Value
Belt Cross SectionA/B
belt section size:B, A
Bore TypeBushed
bore type:QD Bushed
Bushed ForSF
bushing bore range:0.5000 to 2.9375 in
Bushing Maximum Bore Si.2.3125 "
Bushing MountReverse
bushing series:SF
Bushing StyleQD
Length Through Bore2.0625 "
manufacturer upc number:697950118949
MaterialCast Iron
material:Cast Iron
mounting type:Reversible
Number of Grooves6
Outer Diameter16.35 in
Outside Dia16.350"
overall width:4-3/4 in
Pitch Diameter16 "
pitch diameter:15.6 (A) in, 16 (B) in
pulley construction:Arm / Spoke
Sheave ConstructionArm / Spoke
sheave drawing type:A
Sheave Face Width4.75 "
Sheave TypeConventional
UPC Code697950118949
Weight48 lbs
weight:50 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com6 B 160 SF476.01In StockMartin1.0476.0 @ 1
us.rs-online.com72480361527.971In StockMartin Sprocket & Gear48.0527.97 @ 1
thumbzoommotionindustries.com00701051534.941In StockMartin534.94 @ 1
thumbzoomMRO Supply255371551.161In StockMartin Sprocket551.16 @ 1
factorysupplyoutlet.comIK15PK570.171In StockMARTIN570.17 @ 1
thumbzoomPurvis6 B 160 SF575.721In StockMartin575.72 @ 1
thumbzoomZoroG3324600701.991In StockMartin Sprocket & Gear701.99 @ 1
