Martin 80BTB12

B00452UPF4

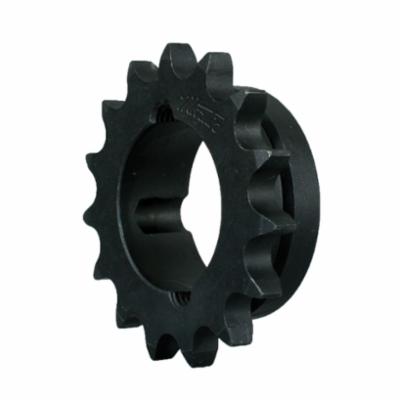

Martin Roller Chain Sprocket, Taper Bushed, Type B Hub, Single Strand, 80 Chain Size, For 1615 Bushing, 1" Pitch, 12 Teeth, 1.625" Max Bore Dia., 4.332" OD, 3" Hub Dia., 0.575" Width

Martin Roller Chain Sprocket, Taper Bushed, Type B Hub, Single Strand, 80 Chain Size, For 1615 Bushing, 1" Pitch, 12 Teeth, 1.625" Max Bore Dia., 4.332" OD, 3" Hub Dia., 0.575" Widthzoom

Attributes

Key Value
Bore TypeTaper Bush
bore type:Bushed
bushing bore range:1/2 to 1-5/8 in
Bushing Size1615
bushing size:1615
bushing type:Taper Locking
caliper diameter:3.2387 in
chain / sprocket type:Standard Roller Chain
Chain Number80
chain number & pitch:80 / 1 in
Chain Pitch1 in
hardened teeth:Non-Hardened Teeth
hub diameter:3 in
length through bore:1.5000 in
manufacturer upc number:697950032139
MaterialSteel
material:Steel
number of hubs:1
number of strands acros.1
Number of Teeth12
Number Of Teeth12
number of teeth:12
Outside Dia4.332"
outside diameter:4.3320 in
overall width:1-1/2 in
Pitch1 in, 1.000 in.
pitch diameter:3.8637 in
pitch type:Single
Size1615
storage dimension heigh.1.5625 in
storage dimension lengt.4.4375 in
storage dimension width:4.4375 in
surface treatment:Protective Coating
tooth width:0.575 in
TypeBushed Roller Chain Spr.
weight:1.80 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7231954869.031In StockMartin Sprocket & Gear69.03 @ 1
cbtcompany.com80BTB1270.561In StockMartin Sprocket & Gear70.56 @ 1
thumbzoomMRO Supply26551171.661In StockMartin Sprocket71.66 @ 1
thumbzoomindustrialzone.com80BTB1272.03In StockMartin2.072.0 @ 3
thumbzoommotionindustries.com0017372074.121In StockMartin74.12 @ 1
thumbzoomPurvis80BTB1274.61In StockMartin74.6 @ 1
thumbzoomapexindustrialautomation.com80BTB1275.97123Martin Sprocket75.97 @ 1
factorysupplyoutlet.comJD34QU107.111In StockMARTIN107.11 @ 1
