Martin 8 D 160 J

B004BKIBKQ

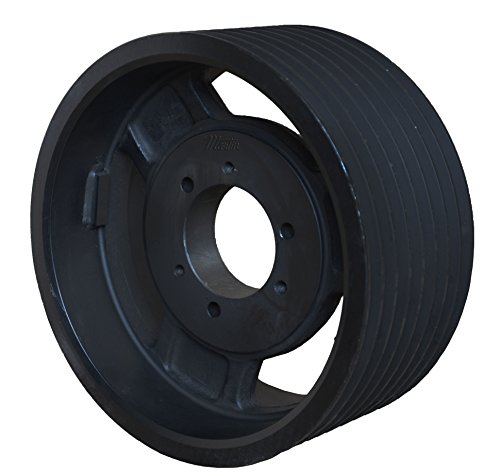

Martin 8 D 160 J Conventional QD Sheave, D Belt Section, 8 Grooves, J Bushing required, Class 30 Gray Cast Iron, 16.6" OD, 1495 max rpm, 16" Pitch Diameter

Martin 8 D 160 J Conventional QD Sheave, D Belt Section, 8 Grooves, J Bushing required, Class 30 Gray Cast Iron, 16.6" OD, 1495 max rpm, 16" Pitch Diameterzoom

Attributes

Key Value
Belt Cross SectionD
Bore TypeBushed
Bushed ForJ
Bushing Maximum Bore Si.3.75 "
Bushing MountReverse
Bushing StyleQD
Length Through Bore4.5 "
MaterialCast Iron
Number of Grooves8
Outer Diameter16.6 in
Pitch Diameter16 "
Sheave ConstructionWeb
Sheave Face Width11.8125 "
Sheave TypeConventional
UPC Code697950123455
Weight175 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB004BKIBKQ2181.391In StockMartin2181.39 @ 1
thumbzoomindustrialzone.com8 D 160 J2836.41In StockMartin1.02836.4 @ 1
thumbzoomMRO Supply2556712950.991In Stock14Martin Sprocket175.02950.99 @ 1
us.rs-online.com724806903232.461In StockMartin Sprocket & Gear175.03232.46 @ 1
cbtcompany.com8 D 160 J3400.971In StockMartin Sprocket & Gear3400.97 @ 1
factorysupplyoutlet.comJX60SF3423.151In StockMARTIN3423.15 @ 1
thumbzoomPurvis8 D 160 J3514.51In StockMartin3514.5 @ 1
thumbzoomapexindustrialautomation.com8 D 160 J3602.9112Martin Sprocket3602.91 @ 1
motionindustries.com007029354623.661In StockMartin4623.66 @ 1
