Martin TS1617

B004BDO7JW

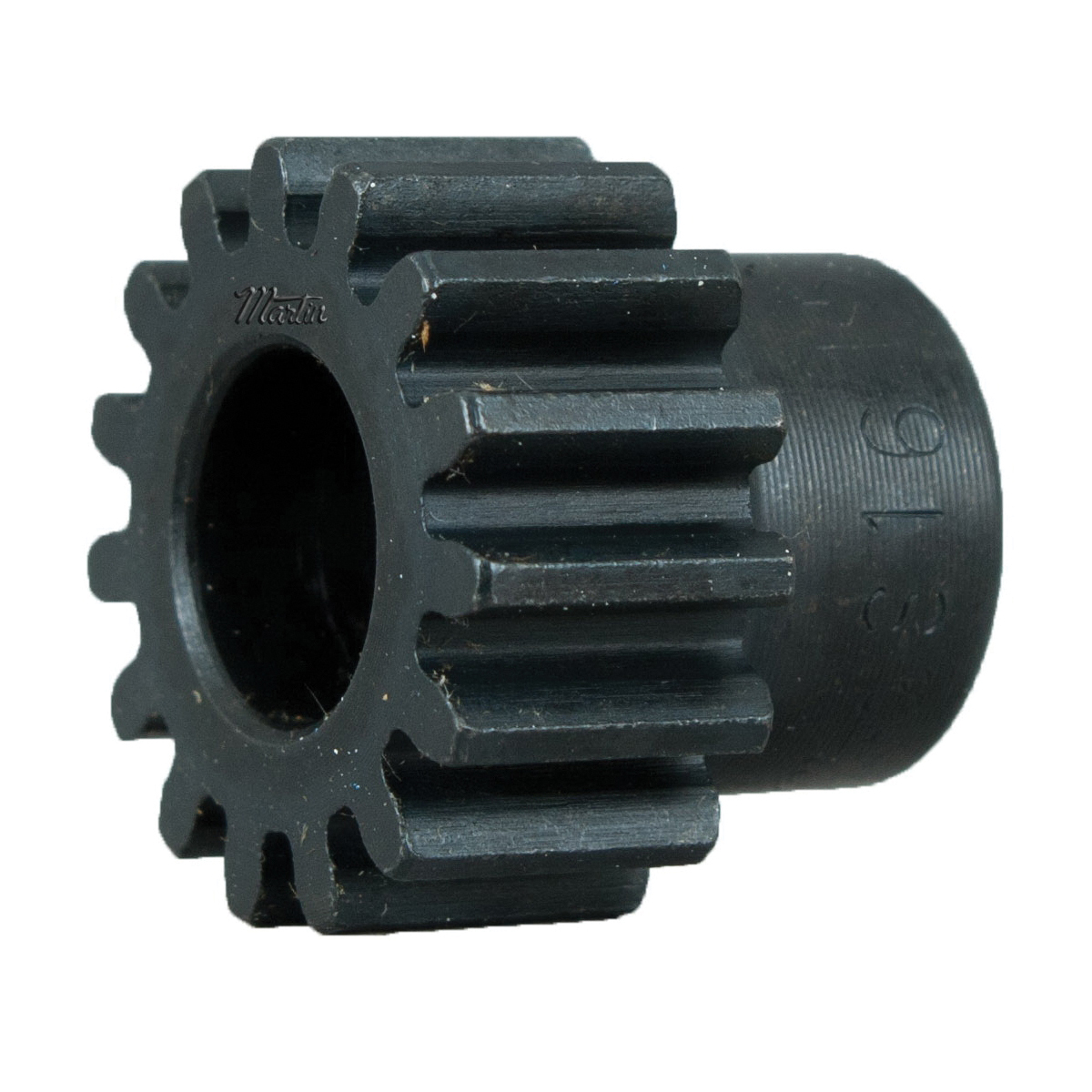

Martin TS1617 Spur Gear, 20? Pressure Angle, High Carbon Steel, Inch, 16 Pitch, 1/2" Bore, 1.188" OD, 0.750" Face Width, 17 Teeth

Martin TS1617 Spur Gear, 20? Pressure Angle, High Carbon Steel, Inch, 16 Pitch, 1/2" Bore, 1.188" OD, 0.750" Face Width, 17 Teethzoom

Attributes

Key Value
Bore Diameter0.5 in ; 12.7 mm
Bore TypeReboreable
Class6
Diametral Pitch16
External Length0.5" (12.7mm)
Gear TypeB
Hub Outside Diameter0.875" (22.2mm)
Key Way SizeNONE
Length Through Bore1.25" (31.8mm)
MaterialSteel
Maximum Bore Diameter0.5" (12.7mm)
Number of Teeth17
Number Of Teeth17
Outer Diameter1.187" (30.1mm)
Outside Dia1.187"
Pitch Diameter1.062" (27mm)
Pressure Angle20 Degrees PA
Set Screw SizeNONE
StyleB
UPC Code697950272535
Weight0.2 lbs. (0.1 kg)
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comTS161723.489In StockMartin1.023.48 @ 9
thumbzoomcbtcompany.comTS161725.681In StockMartin Sprocket & Gear25.68 @ 1
us.rs-online.com7233296026.481In StockMartin Sprocket & Gear0.226.48 @ 1
thumbzoomapexindustrialautomation.comTS161730.231In StockMartin Sprocket30.23 @ 1
thumbzoomPurvisTS161734.441In StockMartin34.44 @ 1
thumbzoomRadwellTS161738.01In StockMARTIN SPROCKET & GEAR INC38.0 @ 1
motionindustries.com0037702840.051In StockMartin40.05 @ 1
thumbzoomMRO Supply25167241.721In StockMartin Sprocket41.72 @ 1
