MARTIN D10CTB95

B00452UVU8

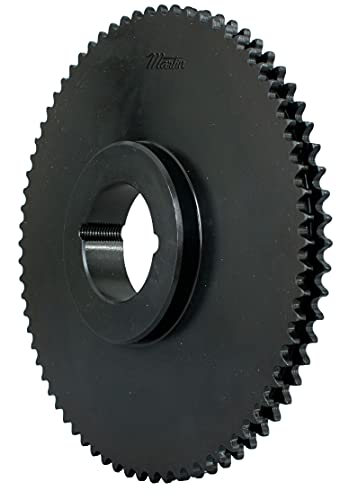

Martin Roller Chain Sprocket, Taper Bushed, Type C Hub, Double Strand, 10B Chain Size, For 2517 Bushing, 15.88mm Pitch, 95 Teeth, 63.5mm Max Bore Dia., 489.4mm OD, 107.95mm Hub Dia., 25.55mm Width

Martin Roller Chain Sprocket, Taper Bushed, Type C Hub, Double Strand, 10B Chain Size, For 2517 Bushing, 15.88mm Pitch, 95 Teeth, 63.5mm Max Bore Dia., 489.4mm OD, 107.95mm Hub Dia., 25.55mm Widthzoom

Attributes

Key Value
bore diameter:12.70 mm
bore type:Bushed
bushing size:2517
bushing type:Taper Lock Bushing
caliper diameter:469.9 mm
chain / sprocket type:Metric Roller Chain
chain number & pitch:10B / 5/8 in
chain roller diameter:10 mm
chain roller width:10 mm
hardened teeth:Non-Hardened Teeth
hub outside diameter:108 mm
hub projection 2:10 mm
hub projection:10 mm
hub style:TB
hub type:C Hub
length through bore:44.45 mm
manufacturer upc number:697950410036
MaterialSteel
material:Steel
maximum bore diameter:57.2 mm
number of strands acros.2
Number Of Teeth95
number of teeth:95
Outside Dia489.820 mm
outside diameter:489.8 mm
Pitch15.880 mm
Pitch Diameter480.140 mm
pitch diameter:480.1 mm
storage dimension heigh.1.75 mm
storage dimension lengt.19.30 mm
storage dimension width:19.30 mm
surface treatment:Protective Coating
tooth thickness:9 mm
tooth width:26 mm
weight:75.595 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB00452UVU8492.191In StockMartin492.19 @ 1
thumbzoommotionindustries.com02301403786.571In StockMartin786.57 @ 1
thumbzoomMRO Supply256087996.591In StockMartin Sprocket996.59 @ 1
thumbzoomPurvisD10CTB951301.661In StockMartin1301.66 @ 1
