Martin HMK624A

B004BDOCW4

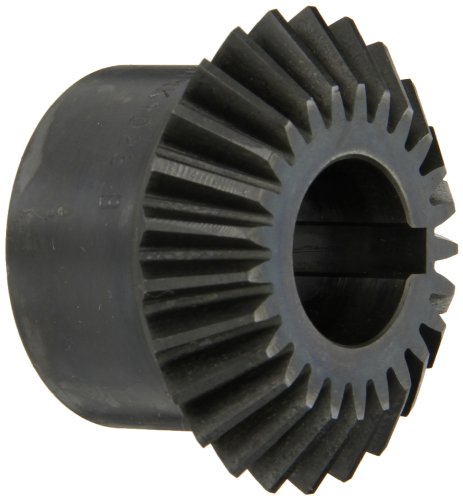

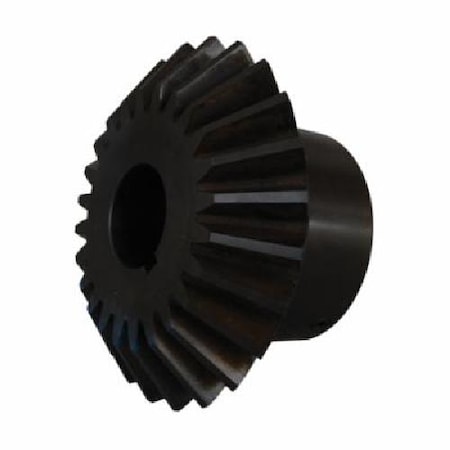

Martin HMK624A Miter Gear, 20? Pressure Angle, High Carbon Steel, Inch, 0.860" Face, 1 1/2" Bore Diameter, 4" Pitch Diameter, 4.24" Outer Diameter, 24 Teeth

Martin HMK624A Miter Gear, 20? Pressure Angle, High Carbon Steel, Inch, 0.860" Face, 1 1/2" Bore Diameter, 4" Pitch Diameter, 4.24" Outer Diameter, 24 Teethzoom

Attributes

Key Value
Bearing Type - Sprockets1.5
Bore TypeBored to Size
Diametral Pitch6
Face Width0.869
Gear Ratio0.0423611111111111
Gear TypeRight Angle Drive
Hub Dia.3
Hub Projection (In.)1.313
Keyway Size3/8 X 3/16
Length through Bore2.3125
Manufacturer Number1
MaterialSteel
Mating GearM624, M624A, HM624, HM6.
Min. Bore1.5
Mounting Distance3.625
Number Of Teeth24
Outside Dia4.236"
Outside Diameter4.236
Pitch Diameter4
Pressure Angle20
Set Screw LocationOver Keyway
Set Screw Size3/8-16x3/8
Storage Height2.3125
Storage Length4.236
Storage Width4.236
Weight4.02

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comHMK624A223.371In StockMartin1.0223.37 @ 1
thumbzoomMRO Supply250927241.811In StockMartin Sprocket241.81 @ 1
thumbzoomPurvisHMK624A327.581In StockMartin327.58 @ 1
thumbzoomZoroG3333411350.991In StockMartin Sprocket & Gear4.02350.99 @ 1
motionindustries.com00369001380.971In StockMartin380.97 @ 1
