Martin TS16104

B004BDO7RO

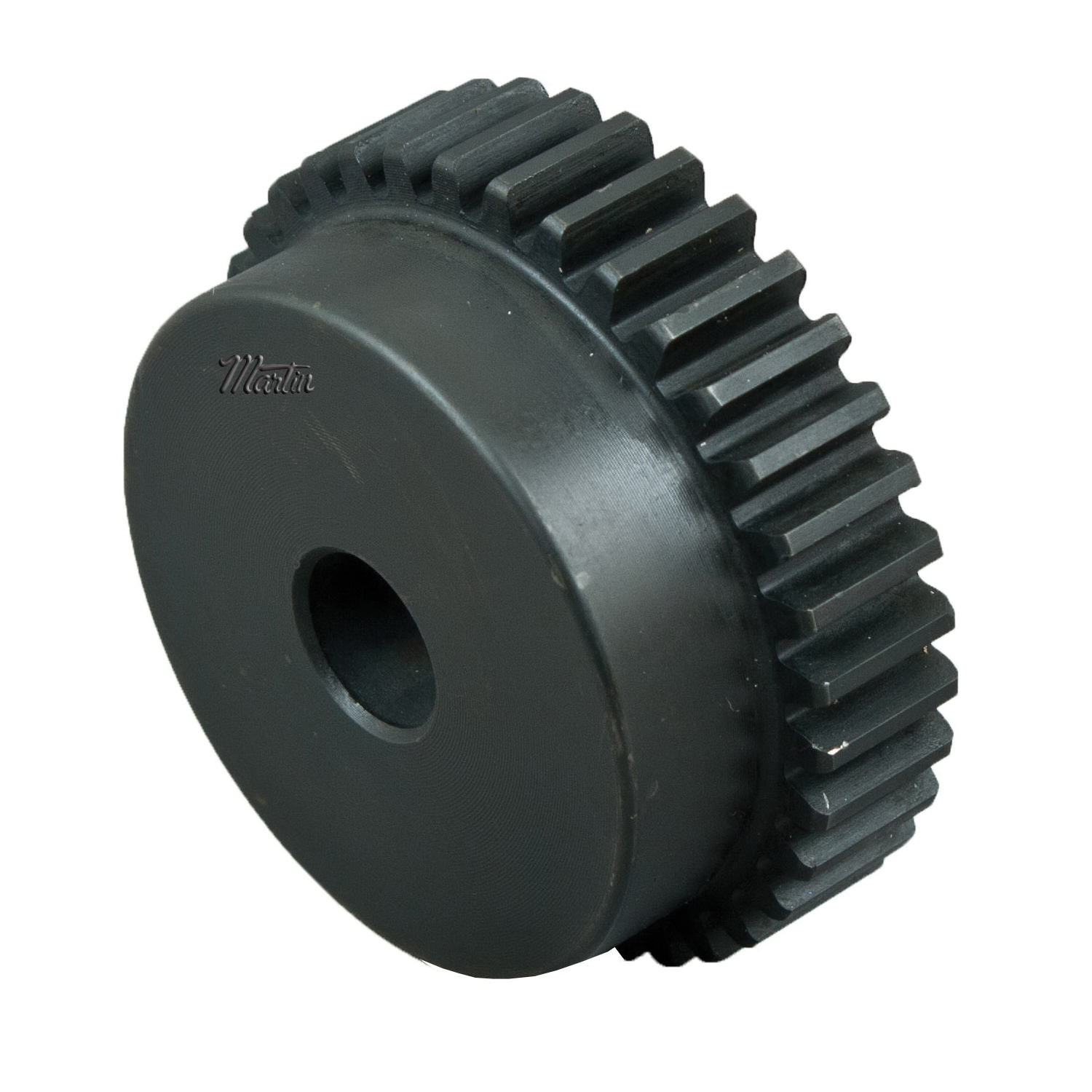

Martin TS16104 Spur Gear, 20? Pressure Angle, High Carbon Steel, Inch, 16 Pitch, 3/4" Bore, 6.625" OD, 0.750" Face Width, 104 Teeth

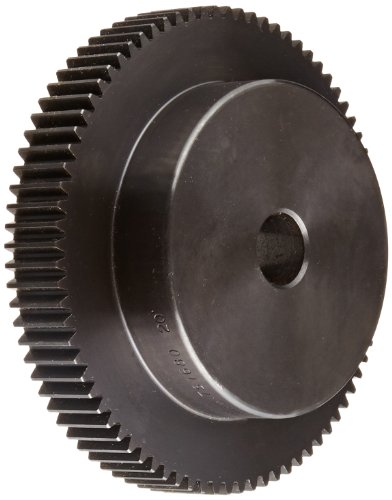

Martin TS16104 Spur Gear, 20? Pressure Angle, High Carbon Steel, Inch, 16 Pitch, 3/4" Bore, 6.625" OD, 0.750" Face Width, 104 Teethzoom

Attributes

Key Value
Bore Diameter0.75 in ; 19.1 mm
bore diameter:3/4 to 2-1/8 in
Bore TypeReboreable
bore type:Rough Stock
Class6
Diametral Pitch12
diametral pitch:16
External Length0.75" (19.1mm)
Face Width (In.)0.75
face width:3/4 in
gear construction:Plain
Gear TypeB
Hub Dia. (In.)3.5
hub diameter:3-1/2 in
Hub Outside Diameter3.5" (88.9mm)
Hub Projection (In.)0.75
hub projection:3/4 in
Hub StyleB
hub type:Hub w/ No Screw
Length through Bore2
Length Through Bore2" (50.8mm)
MaterialSteel
material:Steel
Max. Bore2.125
Maximum Bore Diameter2.125" (54mm)
Min. Bore0.75
Number of Teeth104
Number Of Teeth104
number of teeth:104
Outer Diameter6.625" (168.3mm)
Outside Dia6.625"
Outside Dia. (In.)6.625
outside diameter:6-5/8 in
overall width:1-1/2 in
Pitch16
Pitch Dia. (In.)6.5
Pitch Diameter6.5" (165.1mm)
pitch diameter:6-1/2 in
Pressure Angle20 Degrees PA
Pressure Angle (Deg.)20
pressure angle:20
standards met:ANSI Standard B15.1
Storage Height2
Storage Length6.625
Storage Width6.625
StyleB
UPC Code697950294117
Weight8.91, 8.91 lbs. (4 kg)
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comTS16104114.22In StockMartin1.0114.2 @ 2
thumbzoommotionindustries.com00377034125.281In StockMartin125.28 @ 1
us.rs-online.com72332949128.821In StockMartin Sprocket & Gear8.91128.82 @ 1
thumbzoomcbtcompany.comTS16104130.061In StockMartin Sprocket & Gear130.06 @ 1
thumbzoomMRO Supply251661135.271In StockMartin Sprocket135.27 @ 1
thumbzoomPurvisTS16104167.481In StockMartin167.48 @ 1
thumbzoomZoroG3298210169.741In Stock14Martin Sprocket & Gear8.91169.74 @ 1
