Martin TS824BS 1 1/8

B004BDO62A

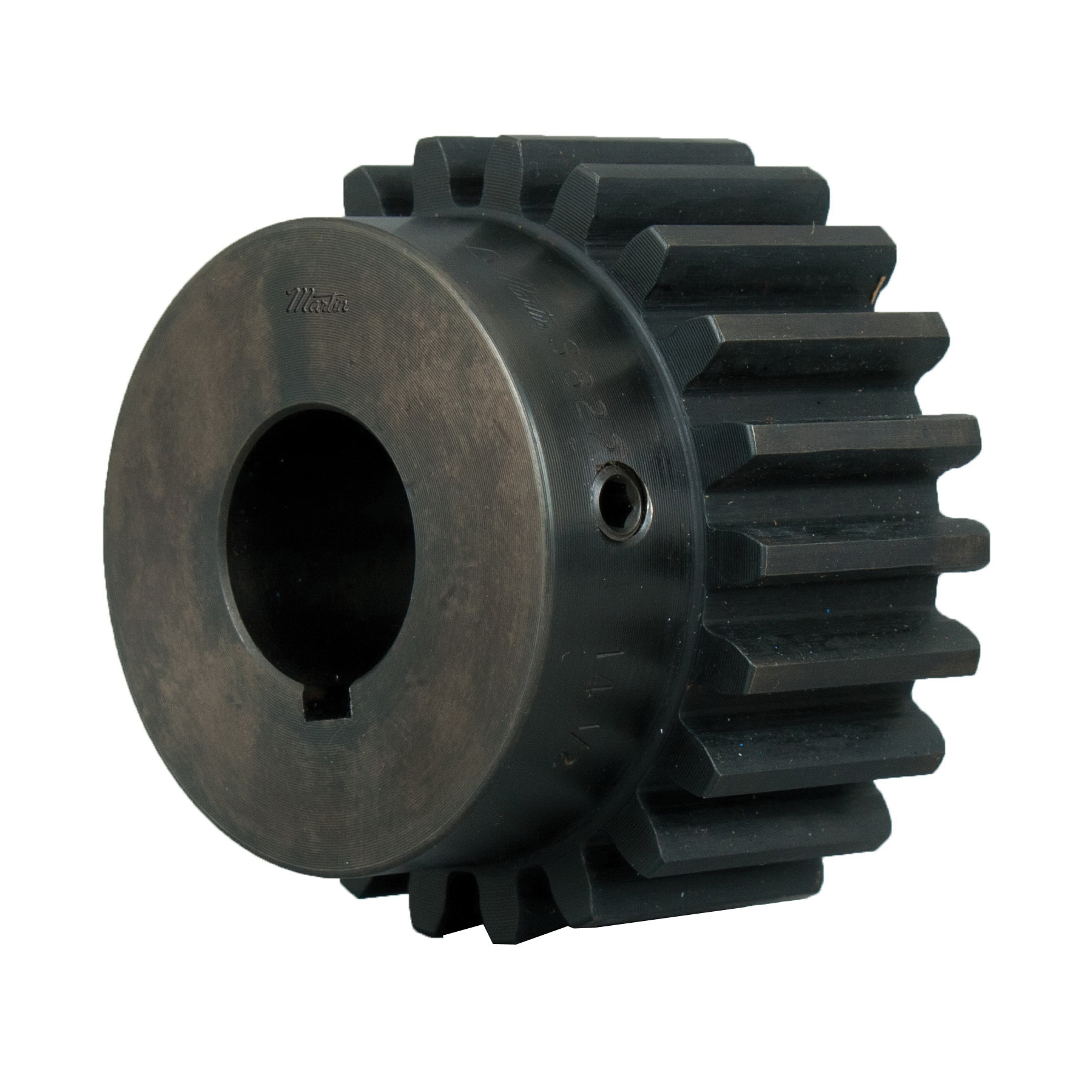

Martin TS824BS 1 1/8 Spur Gear, 20? Pressure Angle, High Carbon Steel, Inch, 8 Pitch, 1-1/8" Bore, 3.25" OD, 1.500" Face Width, 24 Teeth

Martin TS824BS 1 1/8 Spur Gear, 20? Pressure Angle, High Carbon Steel, Inch, 8 Pitch, 1-1/8" Bore, 3.25" OD, 1.500" Face Width, 24 Teethzoom

Attributes

Key Value
Bearing Type - Sprockets1.125
Bore Diameter1.125 in ; 28.6 mm
Bore TypeBored to Size
Class6
Diametral Pitch8
Enlarged OD With Specia.NO
External Length0.875" (22.2mm)
Face Width (In.)1.5
Gear TypeB
Hub Dia. (In.)2.5
Hub Outside Diameter2.5" (63.5mm)
Hub Projection (In.)0.875
Hub StyleB
Key Way Size1/4 X 1/8
Keyway1/4 X 1/8
Length through Bore2.375
Length Through Bore2.375" (60.3mm)
MaterialSteel
Max. Bore1.625
Maximum Bore Diameter1.625" (41.3mm)
Min. Bore1.125
Number of Teeth24
Number Of Teeth24
Outer Diameter3.25" (82.6mm)
Outside Dia3.250"
Outside Dia. (In.)3.25
Pitch8
Pitch Dia. (In.)3
Pitch Diameter3" (76.2mm)
Pressure Angle20 Degrees PA
Pressure Angle (Deg.)20
Set Screw Location90
Set Screw Size5/16-18 X 5/16
Storage Height2.375
Storage Length3.25
Storage Width3.25
StyleB
UPC Code697950441139
Weight3.54, 3.54 lbs. (1.6 kg)
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comTS824BS 1 1/8148.052In StockMartin1.0148.05 @ 2
us.rs-online.com72333134167.021In StockMartin Sprocket & Gear3.54167.02 @ 1
thumbzoomcbtcompany.comTS824BS 1 1/8168.631In StockMartin Sprocket & Gear168.63 @ 1
thumbzoomMRO Supply251853175.371In StockMartin Sprocket175.37 @ 1
thumbzoomapexindustrialautomation.comTS824BS 1 1/8190.6216Martin Sprocket190.62 @ 1
thumbzoomZoroG3316858216.9911Martin Sprocket & Gear3.54216.99 @ 1
thumbzoomPurvisTS824BS 1 1/8217.121In StockMartin217.12 @ 1
motionindustries.com02102880238.261In StockMartin238.26 @ 1
