Martin D08B48

B00452TPKU

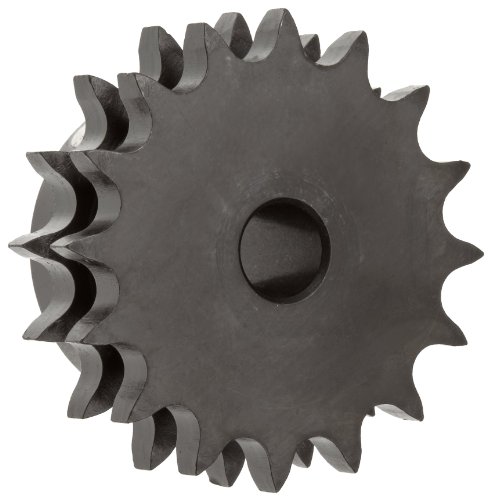

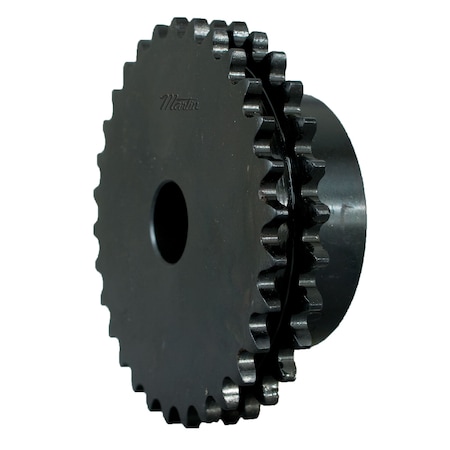

Martin Roller Chain Sprocket, Reboreable, Type B Hub, Double Strand, 08B Chain Size, 12.7mm Pitch, 48 Teeth, 20mm Bore Dia., 201.38mm OD, 110mm Hub Dia., 21.13mm Width

Martin Roller Chain Sprocket, Reboreable, Type B Hub, Double Strand, 08B Chain Size, 12.7mm Pitch, 48 Teeth, 20mm Bore Dia., 201.38mm OD, 110mm Hub Dia., 21.13mm Widthzoom

Attributes

Key Value
Bore Dia. - Sprockets7.30989414933926
bore diameter:20 mm
Bore TypeReboreable
bore type:Reboreable
Caliper Diameter185.671311393217
caliper diameter:185.7 mm
chain / sprocket type:Metric Roller Chain
Chain Number08B-2
chain number & pitch:08B / 1/2 in
Chain Roller Dia.8.509
chain roller diameter:8.509 mm
chain roller width:7.75 mm
Chordal Pitch12.7
Country of Origin (subj.United States
Hardened TeethNo
hardened teeth:Non-Hardened Teeth
Hub Dia.110.0074
Hub Dia. (In.)4.331
hub diameter:110 mm
hub outside diameter:110 mm
hub style:B
Length through Bore45.0088
Length through Bore (In.1.772
length through bore:45 mm
manufacturer upc number:697950397979
MaterialSteel
material:Steel
Max. Bore78
Max. Bore (In.)3.07086614173228
maximum bore diameter:78 mm
Min. Bore20
number of hubs:1
Number of Rows2
number of strands acros.2
Number of Teeth48
Number Of Teeth48
number of teeth:48
Outside Dia201.546 mm
Outside Dia.21.1328
Outside Dia. (In.)0.832
outside diameter:201.5 mm
Pin Dia.8.509
Pitch12.700 mm, 12.7
Pitch Dia.194.180311393217
Pitch Dia. (In.)7.64489414933926
Pitch Diameter194.180 mm
pitch diameter:194.2 mm
pitch type:Single
Roller Width7.75
Sprocket Hub TypeB
storage dimension heigh.1.77 mm
storage dimension lengt.7.93 mm
storage dimension width:7.93 mm
Storage Height1.772
Storage Length7.93489414933926
Storage Width7.93489414933926
Surface TreatmentProtective Coating
surface treatment:Protective Coating
Tooth Thickness7.2136
tooth thickness:7 mm
tooth width:21 mm
TypeMetric Roller Chain
Weight13.665
weight:13.665 lbs
width across tooth sets:21.13 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comD08B48143.62In StockMartin1.0143.6 @ 2
thumbzoomapexindustrialautomation.comD08B48165.01In StockMartin Sprocket165.0 @ 1
thumbzoommotionindustries.com02302195194.911In StockMartin194.91 @ 1
thumbzoomZoroG2533858235.01In Stock14Martin Sprocket & Gear13.665235.0 @ 1
thumbzoomMRO Supply256010260.821In StockMartin Sprocket260.82 @ 1
thumbzoomPurvisD08B48289.581In StockMartin289.58 @ 1
