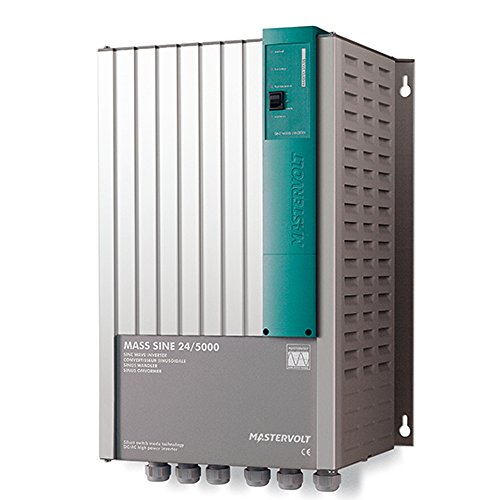

Mastervolt Mass Sine Wave Inverter 24/5000 (230V/50Hz) [24095100]
![Mastervolt Mass Sine Wave Inverter 24/5000 (230V/50Hz) [24095100]](https://m.media-amazon.com/images/I/41ym+zM+9vL._SL75_.jpg)
- Brand: Mastervolt
- PartNumber: 24095100
- Model: 24095100
- PackageQuantity: 1
- Binding: Personal Computers
- Manufacturer: Mastervolt
- Label: Mastervolt
Attributes
| Key | Value |
|---|
| AC connection | internal |
| Approvals | CE, E-mark, ABYC A-31 |
| Continuous power at 40 . | 4000 W |
| Cooling | natural/forced |
| Cos phi | all power factors allow. |
| Display/read-out | LED display |
| Efficiency | 92 % |
| Harmonic distortion typ. | < 5% |
| High battery voltage, s. | 32 V, ? 0.5 V |
| High battery voltage, s. | 30 V, ? 0.5 V |
| Input current (nominal . | 230 A |
| Low battery voltage, sw. | 19 V, ? 0.5 V |
| Low battery voltage, sw. | 22 V, ? 0.5 V |
| MasterBus compatible | yes, using a MasterBus . |
| Max. ripple on DC (batt. | 5% RMS |
| Minimal cable size | 2x 70 mm? |
| Minimal DC fuse (slow b. | 1x 250 A or 2x 125 A |
| No-load power consumpti. | 50 mA - 1.2 W |
| No-load power consumpti. | 250 mA ? 6 W |
| Nominal battery voltage | 24 V |
| Output voltage (±. | 230 V ? 50 Hz (? 0.01 H. |
| Output waveform | true sine |
| P30 power at 40 ?C,. | 5000 W |
| Peak load | 9000 W |
| Protection degree | IP23 |
| Protections | over temperature, over . |
| Recommended battery cap. | > 400 Ah |
| Technology | HF switch mode |
| Transfer system | the Masterswitch and Sy. |
