Description:

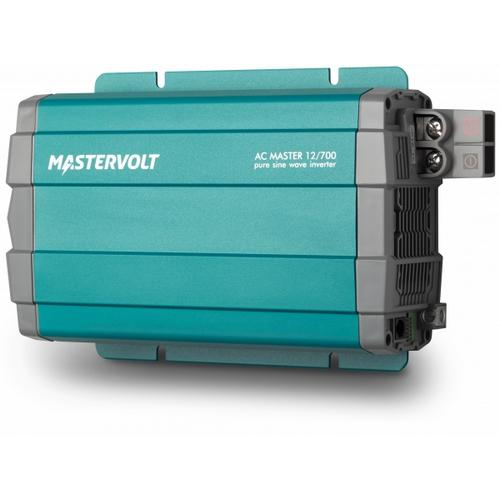

Mastervolt AC Master 12/700 Inverter (230 V, Schuko) 28010700. ?Mastervolt authorized distributor ?. ? (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Attributes
| Key ^ | Value |
|---|---|
| AC connection | plug connection EU (Schuko), with UK plug (code 28210700) or with NZ/AU plug (code 28410700) |
| Alarms | potential free alarm contact |
| Approvals | CE, E-mark, RCM |
| Continuous power at 25 ?C / 77 ?F, cos phi 1, Continuous power at 40 ?C / 104 ?F, cos phi 1 | 700 W |
| Cooling | temperature and load controlled fan |
| Cos phi | all power factors allowed |
| Display/read-out | LED indication: battery voltage, load level, status |
| Efficiency | 91 % |
| Harmonic distortion typical | < 5 % |
| High battery voltage, switches off at | 16,5 V |
| High battery voltage, switches on at | 14,5 V |
| Input current (nominal load) | 70 A |
| Low battery voltage, switches off at | 10,5 V |
| Low battery voltage, switches on at | 12,5 V |
| MasterBus compatible | no |
| Minimal cable size | 25 mm? |
| Minimal DC fuse (slow blow) | 100 A |
| No-load power consumption (energy saving mode) | < 0.1 A |
| No-load power consumption (ON mode) | < 1.5 A |
| Nominal battery voltage | 12 V |
| Output voltage | 200/220/230/240 V ? 50/60 Hz (selectable) |
| Output waveform | true sine |
| Peak load (1 min.) | < 810 W |
| Peak load (1 sec.) | < 1230 W |
| Protection degree | IP21, horizontal wall mounting |
| Protections | over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse) |
| Recommended battery capacity | ? 100 Ah |
| Technology | high frequency, input & output fully isolated |
