Mean Well GSM06E06-P1J

B017TIDNFE

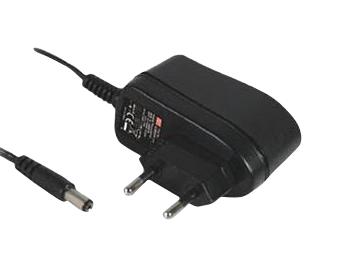

Meanwell GSM06E06-P1J External Power Adaptor -6W 6V 1A

Meanwell GSM06E06-P1J External Power Adaptor -6W 6V 1Azoom

Attributes

Key Value
AC inrush current (max.)Cold start, 30A at 230V.
ApplicationsMedical
Approval AgencyCE, TUV
Base Product NumberGSM06E06
CategoryPower Supplies - Extern.
ConfigurationEnclosed
Cord Length48" (1.22m)
Current - Output (Max)1A
DescriptionAC/DC WALL MOUNT ADAPTE.
Detailed Description6V 6 W AC/DC External W.
Digi-Key Part Number1866-1891-ND
Dimension (LxWxH)32x 66x 42.5 mm
Dimensions1.26 x 2.6 x 1.7 in (L*.
EfficiencyLevel V
EMC standardsEN61000-3-2,3, EN61000-.
FormWall Mount (Class II)
Industry Aliasesnew
Input ConnectorCEE 7/16
Input TypeFixed Blade
Input Voltage100 VAC ; 110 VAC ; 115.
Input Voltage Range85-264 VAC
ManufacturerMEAN WELL USA Inc.
Manufacturer Product Nu.GSM06E06-P1J
Manufacturer Standard L.14 Weeks
MfrMEAN WELL USA Inc.
Mounting TypeWall Plug
No Load Power Consumpti.300mW (Max)
Number of Outputs1
Operating Temperature0?C ~ 50?C
OperationSwitching
Output ConnectorBarrel Plug, 2.1mm I.D..
Output Current1 A
Output Power6 W
Output Voltage6 VDC
PackageBox
PolarizationPositive Center
Power (Watts)6 W
Primary TypeAC-DC
Product StatusActive
Region UtilizedEurope
SeriesGSM06E Series, GSM06E (.
Size / Dimension2.60" L x 1.26" W x 1.6.
Standard DC plugP1J: 2.1?x5.5?x11mm / C.
TypeMedical
Voltage - Input85 ~ 264 VAC
Voltage - Output6V
Wattage6
Working temperature0~+50?C (refer to outpu.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comGSM06E06-P1J9.9117MEAN WELL9.9 @ 5
thumbzoompeaktopeakpower.comGSM06E06-P1J10.315Mean Well10.3 @ 5
us.rs-online.com7038737312.215MEAN WELL12.2 @ 5
thumbzoomNewark66AH606213.4515MEAN WELL13.45 @ 5
thumbzoompowersupplymall.comGSM06E06-P1J14.4815Mean Well14.48 @ 5
electricautomationnetwork.comGSM06E06-P1J14.5815MEANWELL14.58 @ 5
thumbzoomDigi-Key770343216.241200MEAN WELL USA Inc.16.24 @ 5
RS Delivers123-496820.5321196Mean Well20.532 @ 5
AmazonTPB07M6NB3L562.86152Mean Well USA62.86 @ 5
