MEAN WELL NFM-05-5

B00DWIDNVA

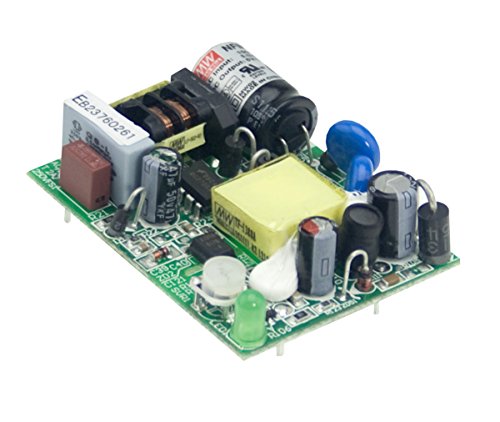

[PowerNex] Mean Well NFM-05-5 5V 1A 5W Single Output Medical Type Power Supply

[PowerNex] Mean Well NFM-05-5 5V 1A 5W Single Output Medical Type Power Supplyzoom

Attributes

Key Value
AC Current (Typ.)0.12A / 115VAC------0.8.
ConfigurationOpen Frame
Dimension58 x 45 x 19.1mm (LxWxH)
Dimensions58 x 45 x 19.1 mm, 2.28.
Efficiency (Typ.)67%
Hold up Time100ms/230VAC - - -24ms/.
Industry Aliasesnew
Input Voltage120 VAC ; 127 VAC ; 190.
Input Voltage Range115-264 VAC
Isolation ResistanceI/P - O/P: 100M Ohms / .
Leakage CurrentTouch current<80 A / 26.
Line Regulation?1.0%
Load Regulation?1.0%
Mounting TypePCB Mount
MTBF738.7Khrs min. MIL-HDBK.
Number of Outputs1
OperationSwitching
Output Current1 A
Output Power5 W
Output Voltage5 VDC, 5V
Over Voltage3.8 ~ 4.95V
Packing0.03Kg; 120pcs / 4.6Kg .
Primary TypeAC-DC
SeriesNFM Series
Special Features3 Year Warranty ; 100% .
Storage Temp., Humidity-40 ~ +85?C, 10 ~ 95% RH
Temp. Coefficient?0.03%/?C (0 ~ 50?C)
TypeMedical
Voltage Range85~264VAC 120~370VDC
Voltage Tolerance?2.0%
Wattage5
Working Humidity20 ~ 90% RH non-condens.
Working Temp.-20 ~ +70?C (Refer to ".

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comNFM-05-58.51524MEAN WELL8.5 @ 1
Future Electronics920373812.91212135MEAN WELL12.912 @ 1
thumbzoompowersupplymall.comNFM-05-515.711In StockMean Well15.71 @ 1
thumbzoompeaktopeakpower.comNFM-05-515.91In StockMean Well15.9 @ 1
us.rs-online.com7006977618.141In StockMEAN WELL18.14 @ 1
AmazonTPB01N6SYCTS31.321In Stock2MEAN WELL31.32 @ 1
