- mpnNFM-10-5
- brandname: MEAN WELL
- manufacturername: MEAN WELL

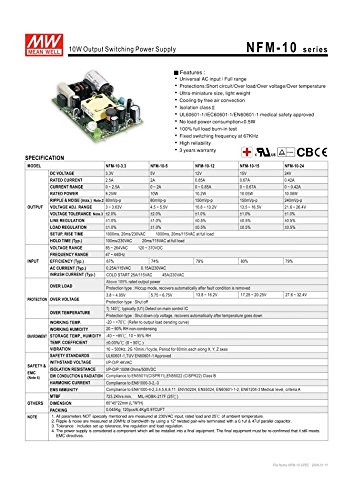

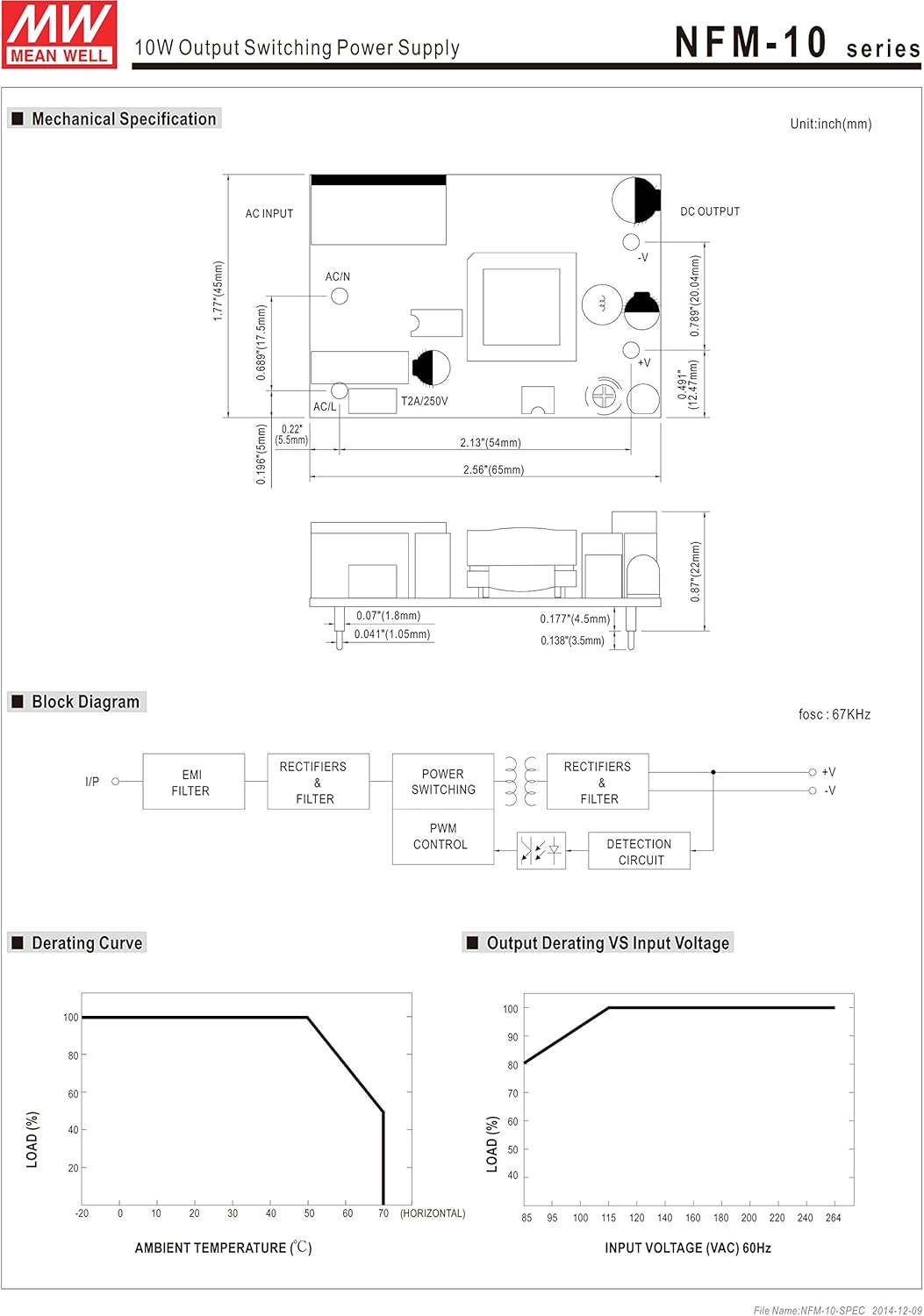

Meanwell NFM-10-5 10W 5V2A micro leakage bare plate medical open frame switching power supply( 12-Pack DHL+ FREE GIFT)
- Brand: MEAN WELL
- PartNumber: NFM-10-5
- Model: NFM-10-5
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Meanwell
- Label: Meanwell
Attributes
| Key | Value |
|---|
| AC Current (Typ.) | 0.25A / 115VAC------0.1. |
| Alternate Part No. | 709-NFM10-5 |
| Approvals | ES60601-1, EN60601-1 |
| ASIN | B017T10Q4M |
| Brand | Mean Well |
| Configuration | Open Frame |
| Depth | 22mm |
| Dimension | 65 x 45 x 22mm (LxWxH) |
| Dimensions | 65 mm L x 45 mm W, 2.55. |
| Efficiency (Typ.) | 66% |
| Height | 22 mm |
| Hold up Time | 100ms/230VAC - - -24ms/. |
| Industry Aliases | new |
| Input Voltage | 120 VAC ; 127 VAC ; 190. |
| Input Voltage Range | 115-264 VAC |
| Isolation Resistance | I/P - O/P: 100M Ohms / . |
| Item model number | NFM-10-5 |
| Leakage Current | Touch current<80 A / 26. |
| Length | 65mm, 65 mm |
| Line Regulation | ?1.0% |
| Load Regulation | ?1.0% |
| Manufacturer | Mean Well |
| Manufacturer Part No. | NFM-10-5 |
| Maximum Temperature | +70?C |
| Medical Approved | Yes |
| Minimum Temperature | -20?C |
| Mounting Style | Chassis |
| Mounting Type | PCB Mount, Chassis Mount |
| MTBF | 723.2Khrs min. MIL-HDBK. |
| Number of Outputs | 1 Output, 1 |
| Open Frame/Enclosed | Open Frame |
| Operation | Switching |
| Output Current | 2 A, 2A |
| Output Current-Channel 1 | 2 A |
| Output Power | 10 W |
| Output Power Rating | 10 W |
| Output Voltage | 5 VDC, 5V, 5V dc |
| Output Voltage-Channel 1 | 5 VDC |
| Over Voltage | 3.8 ~ 4.95V |
| Package Type | Open Frame |
| Packing | 0.45Kg; 120pcs / 6.4Kg . |
| Power Rating | 10W |
| Primary Type | AC-DC |
| Product | Switching Supplies |
| Product Category | Switching Power Supplies |
| Series | NFM Series, NFM-10 |
| Special Features | 3 Year Warranty ; 100% . |
| Stock | Stock |
| Storage Temp., Humidity | -40 ~ +85?C, 10 ~ 95% RH |
| Temp. Coefficient | ?0.03%/?C (0 ~ 50?C) |
| Type | Medical |
| Voltage Range | 85~264VAC 120~370VDC |
| Voltage Tolerance | ?2.0% |
| Wattage | 10 |
| Weight | 45g |
| Width | 45mm, 45 mm |
| Working Humidity | 20 ~ 90% RH non-condens. |
| Working Temp. | -20 ~ +70?C (Refer to ". |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | NFM-10-5 | 9.7 | 1 | 542 | | MEAN WELL | | 9.7 @ 5 |
| us.rs-online.com | 70069779 | 13.55 | 1 | 5 | | MEAN WELL | | 13.55 @ 5 |
| Future Electronics | 4044574 | 14.844 | 1 | 5 | | MEAN WELL | | 14.844 @ 5 |
 | AmazonSC | B017T10Q4M | 15.9 | 1 | 5 | | MEAN WELL | | 15.9 @ 5 |
 | RS Delivers | 424-380 | 17.532 | 1 | 5 | | Mean Well | | 17.532 @ 5 |
 | peaktopeakpower.com | NFM-10-5 | 18.36 | 1 | 5 | | Mean Well | | 18.36 @ 5 |
 | powersupplymall.com | NFM-10-5 | 19.11 | 1 | 5 | | Mean Well | | 19.11 @ 5 |
 | swatee.com | NFM-10-5 | 24.78 | 1 | 27 | | Mean Well | | 24.78 @ 5 |
