MEAN WELL NFM-20-5

mpnNFM-20-5
brandname: MEAN WELL
manufacturername: MEAN WELL

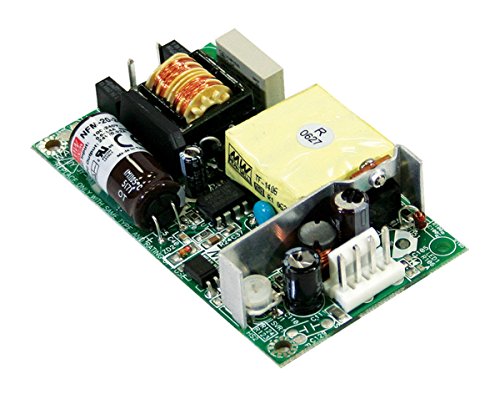

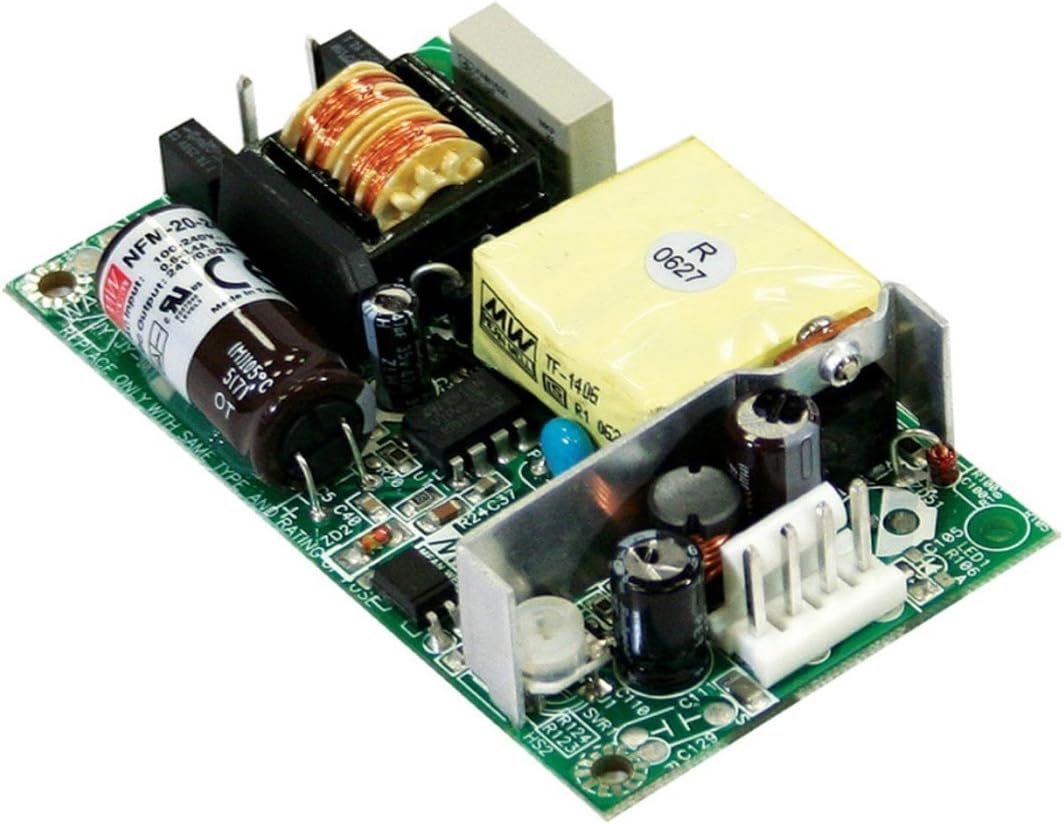

MW Mean Well NFM-20-5 5V 4A 20W Single Output Medical Type Power Supply

MW Mean Well NFM-20-5 5V 4A 20W Single Output Medical Type Power Supply

zoom

Brand: MEAN WELL
PartNumber: NFM-20-5
Model: NFM-20-5
PackageQuantity: 1
Binding: Electronics
Manufacturer: MEAN WELL
Label: MEAN WELL

Attributes

Key	Value
AC Current (Typ.)	0.6A / 115VAC------0.4A.
ASIN	B018197GWQ
Configuration	Open Frame
Dimension	89 x 51 x 19.3mm (LxWxH)
Dimensions	3.50 L x 2.00 W x 0.75 .
Efficiency (Typ.)	71%
Hold up Time	50ms/230VAC - - -16ms/1.
Industry Aliases	new
Input Voltage	120 VAC ; 127 VAC ; 190.
Input Voltage Range	115-264 VAC
Is Discontinued By Manu.	No
Isolation Resistance	I/P - O/P, I/P-FG ,O/P-.
Item model number	NFM-20-5
Line Regulation	?1.0%
Load Regulation	?1.5%
Mounting Type	Panel Mount
MTBF	487.8Khrs min. MIL-HDBK.
Number of Outputs	1, 1 Output
Operation	Switching
Output Current	4.4 A
Output Power	22 W
Output Voltage	5 VDC, 5V
Over Voltage	3.8 ~ 4.46V
Packing	0.09Kg; 105pcs / 10.5Kg.
Primary Type	AC-DC
Series	NFM Series
Special Features	3 Year Warranty ; 100% .
Storage Temp., Humidity	-40 ~ +85?C, 10 ~ 95% RH
Temp. Coefficient	?0.03%/?C (0 ~ 50?C)
Type	Medical
Voltage Range	85~264VAC 120~370VDC
Voltage Tolerance	?2.0%
Wattage	20
Working Humidity	20 ~ 90% RH non-condens.
Working Temp.	-20 ~ +60?C (Refer to ".

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	NFM-20-5	13.7	1	2		MEAN WELL		13.7 @ 2
	peaktopeakpower.com	NFM-20-5	13.7	1	2		Mean Well		13.7 @ 2
	AmazonSC	B018197GWQ	18.75	1	2		MEAN WELL		18.75 @ 2
	us.rs-online.com	70385799	19.04	1	2		MEAN WELL		19.04 @ 2
	Future Electronics	5000725	19.884	1	2		MEAN WELL		19.884 @ 2
	powersupplymall.com	NFM-20-5	26.25	1	2		Mean Well		26.25 @ 2
