Mersen A2D20R

mpn:
A2D20R
brand:
Mersen
manufacturer:
Mersen
MPN:
A2D20R
Description:
Fuse, Time Delay, RK1, Visual Indicator, 200kA AC/100kA DC, 250VAC/DC, 20A
Weight:
0.029375
Weight:
0.05 LB
Price:
8.51
qty:
21
simpleSku:
ODYzMg:::A2D20R
sku:
ODYzMg::58:A2D20R@y0
condition:
11
seller:
cbtcompany.com
amzMan:
mersen
Dimensions:
[4.0, 3.0, 2.0]

Attributes

Key Value
20Amperage
250Voltage (V)
782001990848UPC
A2D20RStock Code
AC Voltage Rating250V AC
Alarm ContactNo
Amps20A
ApplicationMotors Safety Switches Transformers Disconnects Control Panels All General-purpose Circuits
ApprovalsCE, CSA, UL
Body MaterialPolyester
Body StyleCylindrical
BrandMersen/Ferraz Shawmut
CharacteristicTime Delay
ClassRK1, Class RK1
Class RK1 FusesFamily
ClipMounting
Compatible Fuse Block Series2HKRFB
Contact MaterialTin-plated Copper
Current Rating20 A
DC Voltage Rating250V DC
Diameter9/16"
Dimensions0.5625 x 2 in
ElementDual
Equivalent Brand and SeriesBussmann LPN-RK-SPI, Littelfuse LLNRK-ID, Mersen A2D-R
Equivalent SeriesA2D-R, LLNRK-ID, LPN-RK-SPI
Family SeriesMersen, formerly Ferraz Shawmu Fuses, A2D Series
Fits Fuse Block StyleRejection
Fuse 0-30AAmp Rating
Fuse Size2" L x 9/16" dia
Gross Weight0.04 lbs
Gtin00782001990848
If you can not find the right fuse from our website, or you have any question about the replacement fuse, please copy down your existing fuse model number or take a clear photo of your existing fuse, contact our sales department 1-(855)-296-9508 x 188 or send email to cs@bulbspro.com, we will help you find it.Notes
Interrupt Rating100kA at 250V DC, 200kA at 250V AC, 200 kA @ 250 V
ItemFuse
Item NumberA2D20R
Length2"
Length (Straight Wireway)2 in
ManufacturerMersen, formerly Ferraz Shawmu
Manufacturer Part NumberA2D20R
MersenBrand
MpnA2D20R
Net Weight0.04 lbs
P200872, 4XF54Cross Refefence
Package TypeCartridge
PolyesterMaterial
Primary TypeSingle Use Fuses
Product Diameter0.560 in
Product Length2.00 in
Product SeriesA2D
Rejection / NonrejectionRejection
RoHSYes
RoHS/CEUL Listed
SeriesAmp-Trap 2000 SmartSpot Series, A2D, A2D-R
SpeedTime Lag, Time Delay
StandardsCSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137, UL Listed to Standard 248-12, File E2137 CSA Certified to Standard C22.2, No. 248.12
TerminationCartridge
Time-Delay FuseFuse Type
Trip IndicatorYes
TypeCylindrical Fuses
Upc782001990848
Visual IndicationIndicating
Voltage (AC)250 VAC
Voltage (DC)250 VDC
Voltage Rating250 V

All Prices

Img Seller Supplier SKU Requested Price Calc MOQ Price MOQ In Stock Lead Time Brand Weight Preferred Tier
cbtcompany.comA2D20R8.5154.464110Mersen8.51 @ Qty: 10+
thumbzoomturtle.comCS A2D20R10.0664.384110MERSEN10.06 @ Qty: 10+
thumbzoomZoroG189146111.7575.2135Mersen0.4711.75 @ Qty: 10+
thumbzoomKelly HayesA2D20R12.5480.256173Mersen Electrical Power12.54 @ Qty: 10+
us.rs-online.com7097786712.5880.512110Mersen12.58 @ Qty: 10+
thumbzoomsuperbreakers.comA2D20R13.2184.544110Mersen\/Ferraz Shawmut13.21 @ Qty: 10+
thumbzoomGalcoA2D20R-SHAW16.89168.91010Mersen, formerly Ferraz Shawmu0.0416.89 @ Qty: 10+
thumbzoomebay.com_graingerA2D20R17.29110.656110MERSEN17.29 @ Qty: 10+
thumbzoomUnited Electric12182618.77120.128140Mersen18.77 @ Qty: 10+
thumbzoombulbspro.comA2D20R19.88127.232110Mersen19.88 @ Qty: 10+
thumbzoomebay.com_total_control_supplyA2D20R20.31129.984110MERSEN20.31 @ Qty: 10+
Airline HydraulicsFERRAZ A2D20R23.49150.336110Mersen23.49 @ Qty: 10+
thumbzoomebay.com_zorotoolsA2D20R24.93159.552110Mersen/Ferraz Shawmut24.93 @ Qty: 10+
thumbzoomebay.com_jpmustfly36A2D20R30.2193.28110MERSEN30.2 @ Qty: 10+
AmazonSCB0026GW6Q268.4437.76110Mersen68.4 @ Qty: 10+
standardelectricsupply.com2307292167.71073.28110Mersen167.7 @ Qty: 10+
thumbzoomkempstoncontrols.co.ukP200872J237.4368751519.596110Mersen237.436875 @ Qty: 10+
B00F57UP58
22.99 USD
Mersen A2D20R

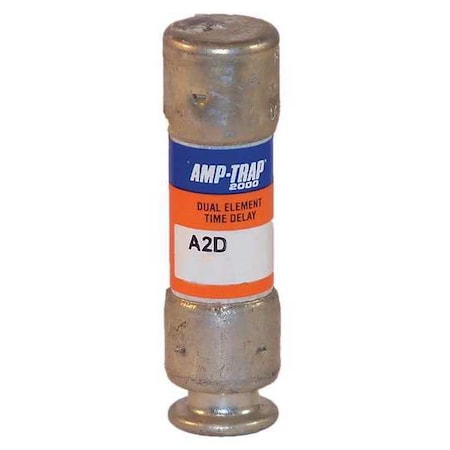

Mersen A2D-R Amp-Trap 2000 Time-Delay/Class RK1 Fuse with Visual Open Fuse Indicator, 250VAC/DC, 200kA AC/100kA DC, 20 Ampere, 9/16" Diameter x 2" Length

Mersen A2D-R Amp-Trap 2000 Time-Delay/Class RK1 Fuse with Visual Open Fuse Indicator, 250VAC/DC, 200kA AC/100kA DC, 20 Ampere, 9/16" Diameter x 2" Lengthzoom
