Micro 100 ITL-320750

B00Q8MA91Y

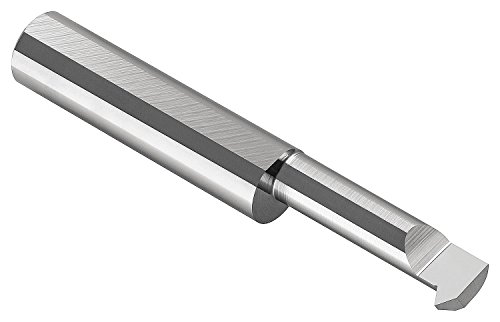

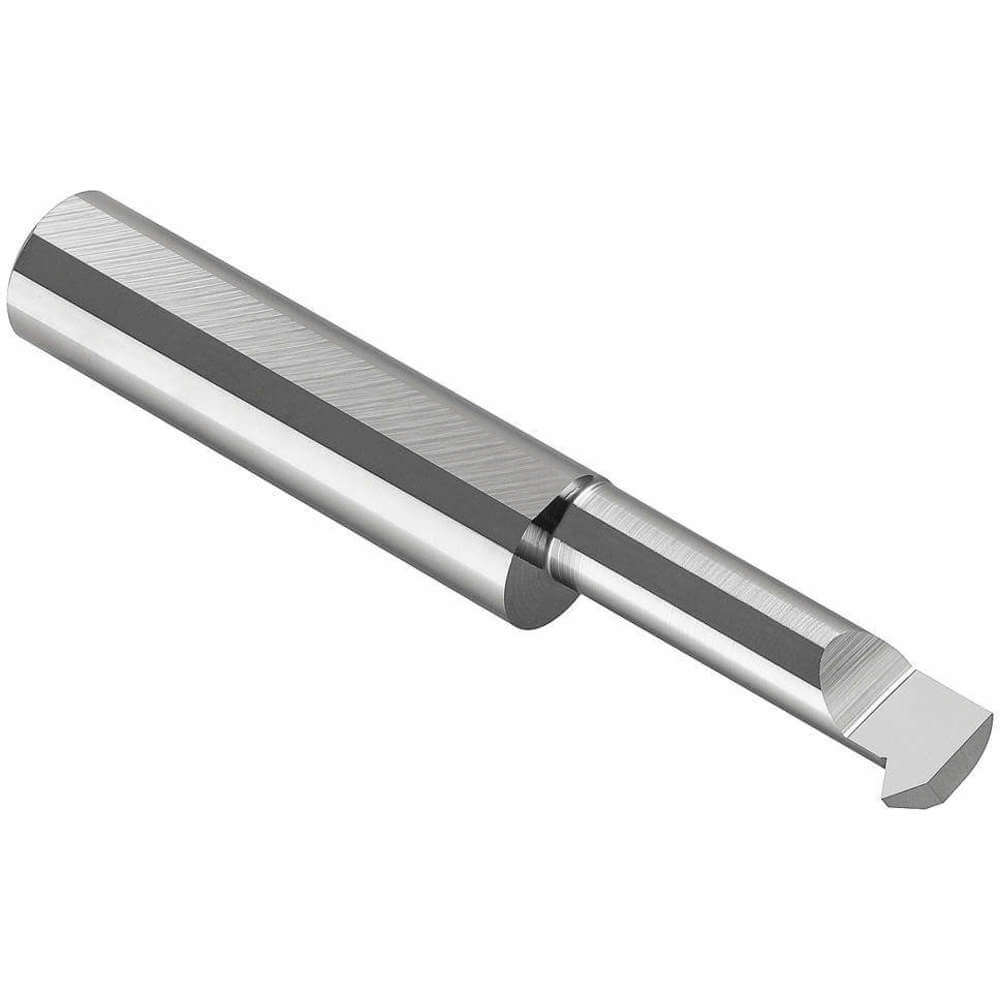

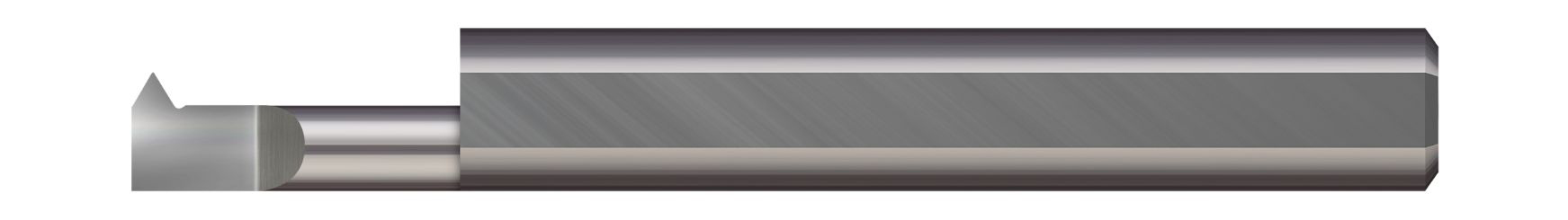

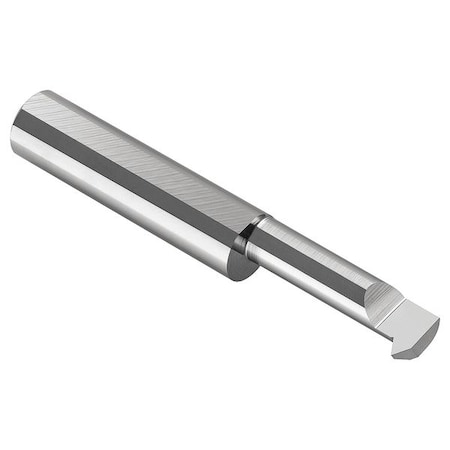

Micro 100 ITL-320750 Threading Tool - UN - Left Hand, 10-32 TPI.320" Min Bore Dia, 3/4" Max Bore Depth.043" Offset.075" Proj.002" Radius.1325" C-L Offset, 2-1/2" OAL, Uncoated

Micro 100 ITL-320750 Threading Tool - UN - Left Hand, 10-32 TPI.320" Min Bore Dia, 3/4" Max Bore Depth.043" Offset.075" Proj.002" Radius.1325" C-L Offset, 2-1/2" OAL, Uncoatedzoom

Attributes

Key Value
BrandMicro 100
Center to Cutting Tip0.1330 in
Country of Origin (subj.United States
Current Stock9
Cutter MaterialCarbide
Cutting ApplicationThreading
Cutting DirectionRight Hand
FeaturesCorner Radius Profile, .
FinishUncoated
Finish - MachiningBright (Uncoated)
Groove Width0.0870"
Hole Dia..320"
Included Angle60 Degrees
Internal/ExternalInternal
International ShippingNo
ItemThreading Tool
Lead TimeExpected to ship in 1-2.
MaterialC2 Micrograin Carbide
Max. Bore Depth3/4"
Max. Depth0.750"
Max. Hole Depth3/4 in
Max. Threads per Inch32
Measurement SystemFractional Inch
Min. Bore Dia.0.3200"
Min. Hole Dia.0.3200 in
Min. Teeth per Inch10
MpnITL-320750
Neck Dia.0.2400"
Offset0.043"
Offset Point0.0430 in
Overall Length2-1/2 in
Overall Length (OAL)2-1/2"
Projection0.0750 in
Radius0.0020"
SeriesITL
Shank Dia.3/8 in
Shank MaterialCarbide
Shank Type - MachiningStraight with Three Fla.
SKUZO-G8142653
Split Length0.210"
StyleInternal Threading Tool
SubCategoryMachining
Thread Angle60 Degrees
Thread DirectionLeft Hand
Thread Size10-32
Thread StandardANSI, Metric 60 Degrees.
Tool TypeInternal Threading Tool
UPC728709139233

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomSuncoast ToolsITL32075060.05133MICRO 100 INC.0.01260.05 @ 1
thumbzoomZoroG814265363.531In StockMicro 1000.0163.53 @ 1
thumbzoomsimsupply.comZO-G814265368.4619Micro 10068.46 @ 1
thumbzoomsustainablesupply.comC144288573.11In StockMicro 1000.0173.1 @ 1
thumbzoomfreertool.comFTS-GE45ITL32075075.591In StockMicro 10075.59 @ 1
thumbzoomRaptor SuppliesAA7WCW103.38839551In StockMICRO 100103.3883955 @ 1
