MICROCHIP TECHNOLOGY MIC4420YMM

B079Q79H85

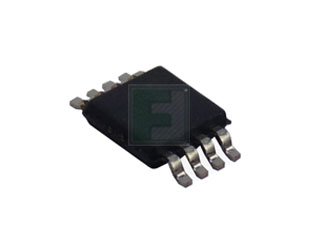

MICROCHIP TECHNOLOGY MIC4420YMM MIC4420 Series 2.5 Ohm 6 A Surface Mount Peak Low-Side MOSFET Driver - MSOP-8 - 10 item(s)

MICROCHIP TECHNOLOGY MIC4420YMM MIC4420 Series 2.5 Ohm 6 A Surface Mount Peak Low-Side MOSFET Driver - MSOP-8 - 10 item(s)zoom

Attributes

Key Value
Base Part NumberMIC4420
Base Product NumberMIC4420
CaseMSOP8
CategoriesIntegrated Circuits (IC.
CategoryIntegrated Circuits (IC.
Channel TypeSingle
Current - Peak Output (.6A, 6A
DescriptionIC GATE DRVR LOW-SIDE 8.
Detailed DescriptionLow-Side Gate Driver IC.
Digi-Key Part Number576-2314-ND
DigiKey ProgrammableNot Verified
Driven ConfigurationLow-Side
Frequency1.6MHz
Gate TypeN-Channel, P-Channel MO.
Impulse rise time35ns
Input TypeNon-Inverting
Kind of integrated circ.gate driver
Kind of outputNon-Inverting
Lead Free Status / RoHS. Lead free / RoHS Compl.
Logic Voltage - VIL, VIH0.8V, 2.4V
ManufacturerMicrochip Technology
Manufacturer Part NumberMIC4420YMM
Manufacturer Product Nu.MIC4420YMM
Manufacturer Standard L.40 Weeks, 6 Weeks
MfrMicrochip Technology
Moisture Sensitivity Le. 1 (Unlimited)
MountingSMD
Mounting TypeSurface Mount
Number of channels1
Number of Drivers1
Operating Temperature-40?C ~ 150?C (TJ)
Operating temperature-40...125?C
Operating voltage4.5...18V
Output current6A
PackageTube
Package / Case8-TSSOP, 8-MSOP (0.118".
PackagingTube
Product StatusActive
Pulse fall time35ns
Rise / Fall Time (Typ)12ns, 13ns
Series-
Standard Package 100
Supplier Device Package8-MSOP
Type of integrated circ.driver
Voltage - Supply4.5V ~ 18V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
iodPartsMIC4420YMM1.0753009900Microchip Technology1.075 @ 300
Future Electronics71674971.39250025Microchip1.392 @ 500
thumbzoomTMEMIC4420YMM1.4125MICROCHIP TECHNOLOGY1.4 @ 25
Newark65AH80741.52125MICROCHIP1.52 @ 25
thumbzoomDigi-Key10298181.7214715Microchip Technology1.72 @ 25
