MCP1726-3302E/SN

B00MMV00KU

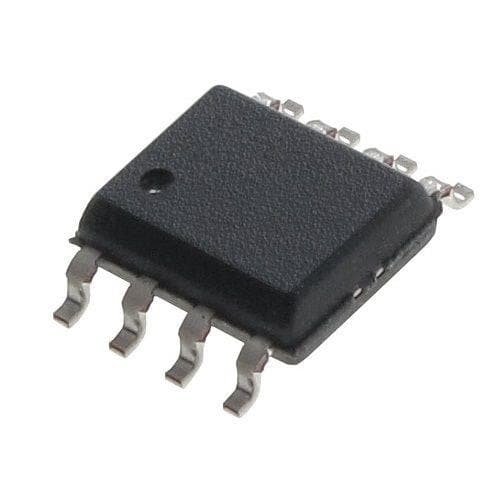

LDO Voltage Regulators 1A 3.3V Vout Extended Temp (10 pieces)

LDO Voltage Regulators 1A 3.3V Vout Extended Temp (10 pieces)zoom

Attributes

Key Value
Accuracy+/-2.5 %
CaseSO8
Dimensions4.90 x 3.90 x 1.5 mm
Dropout Voltage500 mV
Height0.059" (1.5mm)
Input Voltage6 V
Input voltage2.3...6V
Input Voltage Range2.3 to 6 V
Kind of packagetube
Kind of voltage regulat.fixed,
Length0.192 in
Line Regulation0.3 %/V
Load Regulation+/-1.5 %
ManufacturerMICROCHIP TECHNOLOGY
Manufacturer seriesMCP1726
Maximum Operating Tempe.+125 ?C
Minimum Operating Tempe.-40 ?C
MountingSMD
Mounting TypeSurface Mount
Noise Voltage2 ?V/sqrt Hz
Number of channels1
Number of Outputs1
Number of Pins8
Operating temperature-40...125?C
Operation ModeLinear
Output current1A
Output TypeFixed
Output Voltage3.3 VDC
Output voltage3.3V
Package TypeSOIC
Power Dissipation0.366 W
Product HeaderLow Voltage, Low Quiesc.
Regulator TypeLinear, Low Dropout
Supply Current220 ?A
Temperature Operating R.-40 to +125 ?C
Tolerance?2%
Typevoltage regulator
Type of integrated circ.voltage regulator
Voltage drop0.5V
Voltage, Input, High Le.6 V
Voltage, Input, Low Lev.2.3 V
Voltage, Supply, Reject.54 dB
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH27999130.57150Microchip Technology0.57 @ 50
Onlinecomponents.comMCP1726-3302E/SN0.577100845Microchip0.577 @ 100
thumbzoomNewark34M74260.77150MICROCHIP0.77 @ 50
thumbzoomTMEMCP1726-3302E/SN1.091600MICROCHIP TECHNOLOGY1.09 @ 50
RS Delivers628-3706P1.14481470Microchip1.1448 @ 50
us.rs-online.com700461281.81159650Microchip Technology Inc.1.81 @ 1596
AmazonSCB078R4KFRP96.25150MICROCHIP TECHNOLOGY96.25 @ 50
