mpn:
manufacturer:
MPN:
Description:

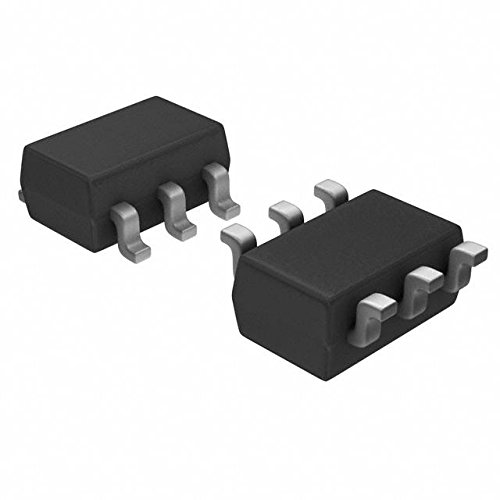

Ic Output D/A Converter 10-Bit W/Eeprom & I2C Interface -40 To 125C Sot23
Preferred Price:
2.94
Price:
2.94
Min Simple Price:
0.87
Absolute Min Price:
2.41
Min Price:
2.41
Dimensions:
[1.0, 1.0, 1.0]
qty:
114
simpleSku:
NDM1NQ:::MCP4716A0T-E/CH
sku:
NDM1NQ::VW:MCP4716A0T-E/CH@y0
condition:
11
seller:
Newark
amzMan:
microchip technology
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Part No. | 579-MCP4716A0TECH |
| Architecture | Resistor String, R-2R |
| Base Product Number | MCP4716 |
| Brand, Manufacturer, Mfr | Microchip Technology |
| Case | SOT23-6 |
| Category | Integrated Circuits (ICs) |
| Converter resolution | 10bit |
| Data Interface | I?C |
| Differential Output | No |
| Digital Interface Type | Serial-2 Wire ; Serial-I2C |
| Dimensions | 3.10 x 1.8 x 1.3 mm |
| Full Scale Error | 20.5 |
| Height | 0.051" (1.3mm) |
| INL/DNL (LSB) | ?0.5, ?0.05 |
| Interface, Interface Type | I2C |
| Kind of package, Packaging | reel |
| Length | 0.12 in |
| Manufacturer | Microchip |
| Manufacturer Part No. | MCP4716A0T-E/CH |
| Max DNL | ?0.188LSB |
| Max INL | ?3.625LSB |
| Maximum Operating Temperature | + 125 C, +125 ?C |
| Maximum Power Dissipation | 452 mW |
| Minimum Operating Temperature | -40 ?C, - 40 C |
| Mounting | SMD |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| Nonlinearity | +3.625 LSB |
| Number of Bits | 10 |
| Number of channels, Number of Converters, Number of D/A Converters, Number of DAC Channels | 1 |
| Number of Pins | 6 |
| Operating current | 210?A |
| Operating Temperature | -40?C ~ 125?C |
| Operating temperature | -40...125?C |
| Operating voltage | 2.7...5.5V |
| Output Type | Voltage - Buffered |
| Package | Tape & Reel (TR) |
| Package / Case, Package/Case, Supplier Device Package | SOT-23-6 |
| Package Type | SOT-23 |
| Product Category | Digital to Analog Converters - DAC |
| Product Status | Active |
| Reference Type | External, Supply |
| Resolution | 10 bit |
| Sampling Rate | 3.4 Mbps |
| Series | - |
| Setting Time | 6 ?s |
| Settling Time | 6?s (Typ), 6 us |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Temperature Operating Range | -40 to +125 ?C |
| Type of integrated circuit | D/A converter |
| Type of Power Supply | Single Output |
| Typical Single Supply Voltage | 2.7 to 5.5 V |
| Voltage - Supply, Analog, Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Width | 0 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Newark | 85R1736 | 0.87 | 1070.1 | 3000 | 50 | MICROCHIP | 0.87 @ Qty: 3000+ | |||
| Digi-Key | 2665070 | 0.9116 | 27.71264 | 1 | 50 | Microchip Technology | 0.9116 @ Qty: 50+ | |||
 | TME | MCP4716A0T-E/CH | 1.16 | 35.264 | 1 | 318 | MICROCHIP TECHNOLOGY | 1.16 @ Qty: 50+ | ||
 | swatee.com | MCP4716A0T-E/CH | 1.48 | 44.992 | 1 | 1838 | Microchip | 1.48 @ Qty: 50+ | ||
| RS Delivers | 738-7124P | 1.7412 | 52.93248 | 1 | 50 | Microchip | 1.7412 @ Qty: 50+ | |||
| us.rs-online.com | 70048196 | 2.95 | 89.68 | 1 | 50 | Microchip Technology Inc. | 2.95 @ Qty: 50+ |
