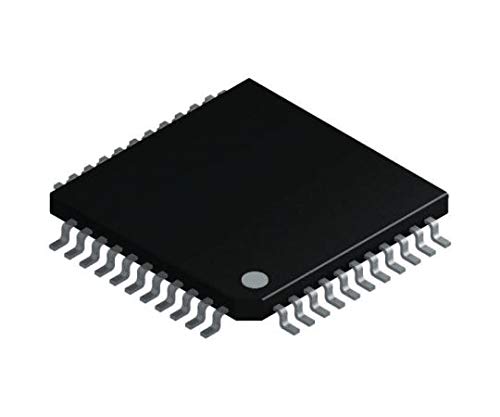

MICROCHIP TECHNOLOGY TC7109CKW

B00AZV316E

Analog to Digital Converters - ADC 13 Bit Fast Recovery

Analog to Digital Converters - ADC 13 Bit Fast Recoveryzoom

Attributes

Key Value
Alternate Part No.579-TC7109CKW
ArchitectureDual Slope, Dual-Slope
Base Product NumberTC7109
BrandMicrochip Technology
CategoryIntegrated Circuits (IC.
ConfigurationADC
Conversion Rate0.01 kS/s
Data InterfaceParallel
Features-
Input TypeDifferential
Interface TypeParallel
ManufacturerMicrochip
Manufacturer Part No.TC7109CKW
Maximum Operating Tempe.+ 70 C
Maximum Power Dissipati.1000 mW
MfrMicrochip Technology
Minimum Operating Tempe.0 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of A/D Converters1
Number of Bits12
Number of Channels1 Channel
Number of Converters1
Number of Inputs1
Operating Supply Voltage6.2 V
Operating Temperature0?C ~ 70?C
PackageTray
Package / Case44-QFP
Package/CaseMQFP-44
PackagingTray
Product CategoryAnalog to Digital Conve.
Product StatusActive
Ratio - S/H:ADC-
Reference TypeExternal
Resolution12 bit
Sampling Rate (Per Seco.30
Series-
SNRNo
Supplier Device Package44-MQFP (10x10)
Voltage - Supply, Analog5V
Voltage - Supply, Digit.5V
Voltage ReferenceInternal, External

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Mouser579-TC7109CKW14.22119Microchip14.22 @ 1
thumbzoomNewark92C647815.4896In StockMICROCHIP15.48 @ 50
Digi-Key44236415.4865696In Stock47Microchip Technology15.48656 @ 96
RS Delivers774-739322.74140Microchip22.74 @ 1
thumbzoomswatee.comTC7109CKW27.57158Microchip27.57 @ 1
