Molex / Waldom 26-60-2080

mpn0026602080
brandname: Molex
manufacturername: Molex

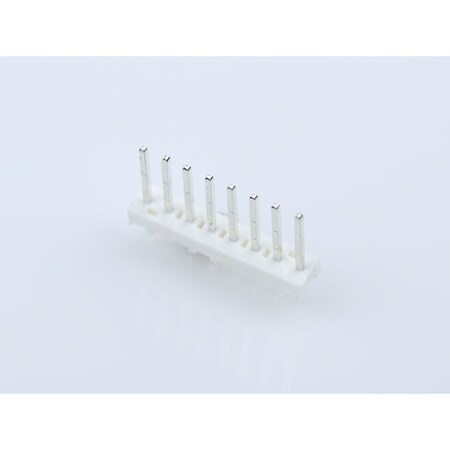

26-60-2080, Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole KK Bag (100 Items)

Brand: Molex / Waldom
PartNumber: 26-60-2080
Model: 26-60-2080
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Part No.	538-26-60-2080
Applications	Automotive, General Pur.
Base Product Number	002660
Brand	Molex
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.450" (11.43mm)
Contact Length - Post	0.140" (3.56mm)
Contact Material	Brass, -
Contact Plating	Tin
Contact Plating Thickne.	5.08 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 8POS 3.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM19516-ND
Fastening Type	Push-Pull
Features	-
Flammability Rating	UL 94V-0
Hole Center to Center	3.96 mm
Housing Material	Polyester
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.130" (3.30mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Part No.	26-60-2080
Manufacturer Product Nu.	0026602080
Manufacturer Standard L.	19 Weeks
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	235?C
Max. Voltage	250V
Mfr	Molex
Mounting Angle	Vertical
Mounting Type	Through Hole
Number of Contacts	8
Number of Positions	8
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Overall Contact Length	0.720" (18.29mm)
Package	Bulk
Package Quantity	1
Packaging	Bulk
Part # Aliases	0026602080 41771-0008
Part Status	Active
Pitch	3.96 mm
Pitch - Mating	0.156" (3.96mm)
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Headers
Row Spacing - Mating	-
Series	KK396, 41771, 41771
Shrouding	Unshrouded
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Termination Style	Through Hole
Tradename	KK
Type	Pin Strip
Voltage Rating	250 V, -

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Onlinecomponents.com	26-60-2080	0.349	1600	2	Molex	0.349 @ 1600
Waldom	MOLEX 26-60-2080	0.54	100	3820	MOLEX	0.54 @ 100
jensentools.com	10159334	0.72	1	3820	Molex	0.72 @ 2
Newark	91M8038	0.87	90	2	MOLEX	0.87 @ 50
Zoro	G405892764	0.95	100	2	Molex	0.95 @ 100
Mouser	538-26-60-2080	1.04	1	2	Molex	1.04 @ 2
Digi-Key	3159565	1.39	1	7343	Molex	1.39 @ 2
swatee.com	26-60-2080	1.74	1	592	Molex	1.74 @ 2
Radwell	26-60-2080	2.25	1	2	MOLEX	2.25 @ 2
