Molex 26-60-3020

mpn0026603020
brandname: Molex
manufacturername: Molex

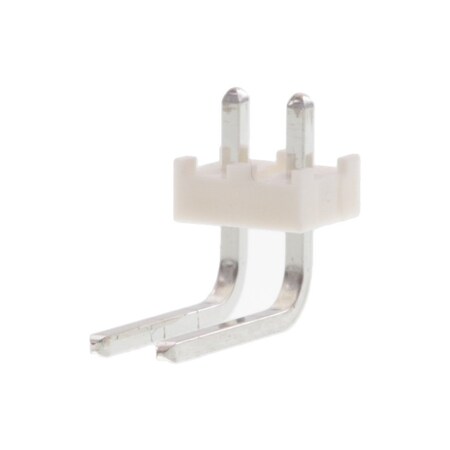

Molex Header Connector,PCB Mount,recept,2 Contacts,pin,0.156 Pitch,pc Tail Terminal Rohs Compliant: Yes - 26-60-3020

Brand: Molex
PartNumber: 26-60-3020
PackageQuantity: 1
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Alternate Part No.	538-26-60-3020
Applications	Automotive, General Pur.
Base Product Number	002660
Brand	Molex
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.585" (14.86mm)
Contact Length - Post	0.140" (3.56mm)
Contact Material	Brass, -
Contact Plating	Tin
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 2POS 3..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM19518-ND
Fastening Type	Push-Pull
Features	-
Housing Material	Polyester
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.130" (3.30mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Part No.	26-60-3020
Manufacturer Product Nu.	0026603020
Manufacturer Standard L.	9 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Angle	Right
Mounting Type	Through Hole, Right Ang.
Number of Positions	2
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Packaging	Bulk
Part # Aliases	0026603020 41772-0002
Pitch	3.96 mm
Pitch - Mating	0.156" (3.96mm)
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Headers
Row Spacing - Mating	-
Series	41772, KK396, 41772
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Termination Style	Through Hole
Tradename	KK
Type	Pin Strip
Voltage Rating	250 V, -

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Verical	26-60-3020	0.132	243	3988	Molex	0.132 @ 243
Waldom	MOLEX 26-60-3020	0.144	400	8970	MOLEX	0.144 @ 400
jensentools.com	10159344	0.19	1	8470	Molex	0.19 @ 2
NEP Electronics	26-60-3020	0.2	400	8470	Molex	0.2 @ 400
Newark	56H5761	0.243	8550	2	MOLEX	0.243 @ 8550
Digi-Key	3159583	0.34	1	8537	Molex	0.34 @ 2
Mouser	538-26-60-3020	0.37	1	9890	Molex	0.37 @ 2
swatee.com	26-60-3020	0.72	1	457	Molex	0.72 @ 2
Radwell	26-60-3020	0.9	1	2	MOLEX	0.9 @ 2
Zoro	G2756080	120.0	400	2	Molex	120.0 @ 400
