Molex 26-60-3030

mpn0026603030
brandname: Molex
manufacturername: Molex

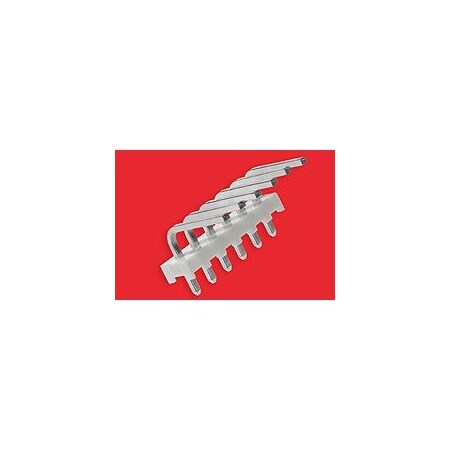

Molex Header Connector,PCB Mount,recept,3 Contacts,pin,0.156 Pitch,pc Tail Terminal Rohs Compliant: Yes - 26-60-3030

Molex Header Connector,PCB Mount,recept,3 Contacts,pin,0.156 Pitch,pc Tail Terminal Rohs Compliant: Yes - 26-60-3030

zoom

Brand: Molex
PartNumber: 26-60-3030
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	002660
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.585" (14.86mm)
Contact Length - Post	0.140" (3.56mm)
Contact Material	-
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 3POS 3..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM13466-ND
Family Name	KK 396
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.130" (3.30mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0026603030
Manufacturer Standard L.	24 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	3
Number of Positions	3
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch - Mating	0.156" (3.96mm)
Plating Material	Tin
Product Status	Active
Row Spacing - Mating	-
Series	KK396, 41772, 41772 Ser.
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 26-60-3030	0.202	300	18995		MOLEX		0.202 @ 300
	Verical	26-60-3030	0.204	157	6598		Molex		0.204 @ 157
	Onlinecomponents.com	26-60-3030	0.206	1	15745		MOLEX / WALDOM		0.206 @ 1
	jensentools.com	10159345	0.27	1	18995		Molex		0.27 @ 1
	NEP Electronics	26-60-3030	0.2809	300	18995		Molex		0.2809 @ 300
	us.rs-online.com	71457143	0.36373	1	274		Molex Incorporated		0.36373 @ 1
	Hotenda	H1367108	0.44	1	227		Molex		0.44 @ 1
	Newark	91M8055	0.445	1	18995		MOLEX		0.445 @ 1
	Digi-Key	3159586	0.45	1	95		Molex		0.45 @ 1
	Mouser	538-26-60-3030	0.49	1	4387		Molex		0.49 @ 1
	Radwell	26-60-3030	0.8	4000	274		MOLEX		0.8 @ 4000
	Zoro	G2756972	120.0	1	227		Molex		120.0 @ 1
