26-60-4030

mpn0026604030
brandname: Molex
manufacturername: Molex

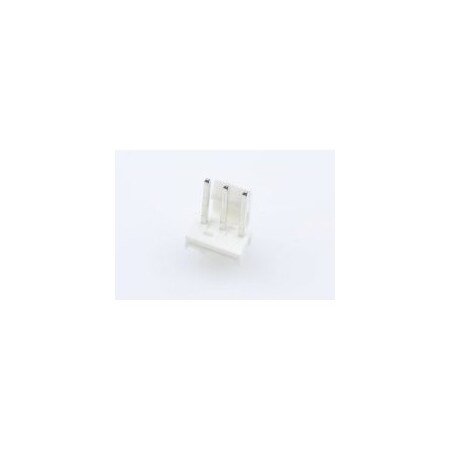

Headers & Wire Housings VERT PCB HDR 3P TIN FRICTION LOCK (100 pieces)

PartNumber: 26-60-4030
PackageQuantity: 100
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Agency Approvals	CSA ; UL
Alternate Mfr Part Numb.	41791-0003
Angle	Straight
Applications	Automotive, General Pur.
Base Product Number	002660
Category	Connectors, Interconnec.
Color	Natural
Connector	socket
Connector pinout layout	1x3
Connector series	KK 396
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.450" (11.43mm)
Contact Length - Post	0.140" (3.56mm)
Contact Material	Brass, -
Contact Plating	Tin
Contact plating	tinned
Contact Shape	Square
Contact Type	Male Pin
Contacts pitch	3.96mm
Current Rating	7 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 3POS 3.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM4621-ND
Electrical mounting	THT
Engineering PN	41791-0003
Family Name	KK 396
Fastening Type	Friction Lock
Features	-
Flammability rating	UL94V-0
Housing Material	Glass Filled Polyester
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.446" (11.33mm)
Insulation Material	Polyester, Glass Filled
Kind of connector	male
Locking system	latch
Manufacturer	Molex
Manufacturer Product Nu.	0026604030
Manufacturer Standard L.	24 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Max. operating voltage	250V
Maximum current	7A
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	3
Number of Contacts	3
Number of pins	3
Number of Positions	3
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	0 to +75 ?C, -
Orientation	Vertical
Overall Contact Length	0.720" (18.29mm)
Overall Length	0.462 "
Package	Bulk
Package Quantity	1
Pin Length	0.45 "
Pin Spacing	0.156 in
Pitch	3.96 mm (0.156")
Pitch - Mating	0.156" (3.96mm)
Plating Material	Tin
Primary Type	Board Mount
Product Header	41791 Series Friction L.
Product Status	Active
Row Spacing - Mating	-
Series	41791 Series, KK396, 41.
Shrouding	Shrouded - 1 Wall
Spatial orientation	Straight
Special Features	Not Low-Halogen
Style	Board to Board or Cable
Termination	Solder, Through Hole
Type	Vertical Header
Type of connector	wire-board
Voltage Rating	250 V, -

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Avnet	0026604030	0.127	1	3386		Molex	0.127 @ 10
Onlinecomponents.com	26-60-4030	0.151	1	10		MOLEX / WALDOM	0.151 @ 10
Newark	56H5832	0.192	1	6792		MOLEX	0.192 @ 10
NEP Electronics	26-60-4030	0.2074	400	10		Molex	0.2074 @ 400
Component Electronics	704A-3V	0.23	1	10		Molex	0.23 @ 10
Digi-Key	96502	0.32	1	137073		Molex	0.32 @ 10
us.rs-online.com	70191667	0.39794	1	304		Molex Incorporated	0.39794 @ 10
RS Delivers	679-5684	0.4008	1	1050		Molex	0.4008 @ 10
TME	MX-26-60-4030	0.411	3	10		MOLEX	0.411 @ 10
Radwell	26-60-4030	0.7	1	10		MOLEX	0.7 @ 10
AmazonTP	B005T7GPIK	5.99	1	10	2	Molex	5.99 @ 10
Zoro	G2755064	120.0	400	10		Molex	120.0 @ 400
