Molex / Waldom 26-60-4080

mpn0026604080
brandname: MOLEX
manufacturername: MOLEX

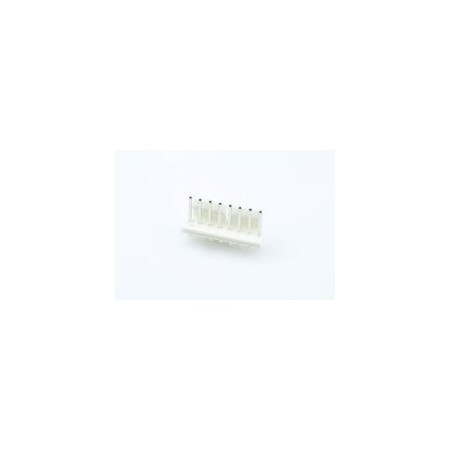

Molex / Waldom 26-60-4080 Connector Headers and PCB Receptacles

Molex / Waldom 26-60-4080 Connector Headers and PCB Receptacles

zoom

Brand: Molex / Waldom
PartNumber: 26-60-4080
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Agency Approvals	CSA ; UL
Alternate Mfr Part Numb.	41791-0008
Angle	Straight
Application	Power ; Wire-to-Board
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Male Pin
Contact Finish - Mating	60.0?in (1.52?m)
Contact Finish - Post	-
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	Automotive, General Pur.
Contact Length - Mating	0.140" (3.56mm)
Contact Length - Post	0.720" (18.29mm)
Contact Material	Polyester, Glass Filled.
Contact Plating	Tin
Contact Shape	Tin
Contact Type	0.156" (3.96mm)
Current Rating	7 A
Current Rating (Amps)	-
Family Name	KK 396
Fastening Type	0.450" (11.43mm)
Features	-
Housing Material	Glass Filled Polyester
Ingress Protection	UL94 V-0
Insulation Color	-
Insulation Height	Square
Insulation Material	-
Mated Stacking Heights	60.0?in (1.52?m)
Material Flammability R.	Natural
Mfr	Molex
Mounting Type	Solder
Number of Circuits	8
Number of Contacts	8
Number of Positions	1
Number of Positions Loa.	Board to Board or Cable
Number of Rows	1, -
Operating Temperature	0 to +75 ?C, -
Orientation	Vertical
Overall Contact Length	0.446" (11.33mm)
Overall Length	1.242 "
Package	Active
Part Status	Header
Pin Length	0.45 "
Pin Spacing	0.156 in
Pitch	3.96 mm (0.156")
Pitch - Mating	8
Plating Material	Tin
Primary Type	Board Mount
Product Header	41791 Series Friction L.
Row Spacing - Mating	All
Series	Bulk, 41791 Series
Shrouding	Through Hole
Special Features	Not Low-Halogen
Style	Shrouded - 1 Wall
Termination	Through Hole, Friction .
Type	Vertical Header
Voltage Rating	250 V, -

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Freelance Electronics	26-60-4080	0.20711	1	500		MOLEX		0.20711 @ 500
	Sager Electronics	0026604080	0.251	1	9101		Molex		0.251 @ 500
	Onlinecomponents.com	26-60-4080	0.407	1	8531		MOLEX / WALDOM		0.407 @ 500
	Component Electronics	704A-8L	0.45	1	500		Molex		0.45 @ 500
	Newark	56H5848	0.484	1	536		MOLEX		0.484 @ 500
	Digi-Key	WM4626-ND	0.5232	1	500		Molex		0.5232 @ 500
	NEP Electronics	26-60-4080	0.5294	150	500		Molex		0.5294 @ 500
	TME	MX-26-60-4080	0.554	2	2927		MOLEX		0.554 @ 500
	us.rs-online.com	70191013	0.71	1	4931		Molex Incorporated		0.71 @ 500
	Carlton Bates Company	78068798337	0.85	1	500		MOLEX		0.85 @ 500
	RS Delivers	679-5704	1.1952	1	500		Molex		1.1952 @ 500
	AmazonTP	B00VQU03PA	6.04	1	500	2	Molex		6.04 @ 500
	Zoro	G2758549	105.0	1	500		Molex		105.0 @ 500
