Molex / Waldom 26-60-4150

B00GQQXPA4

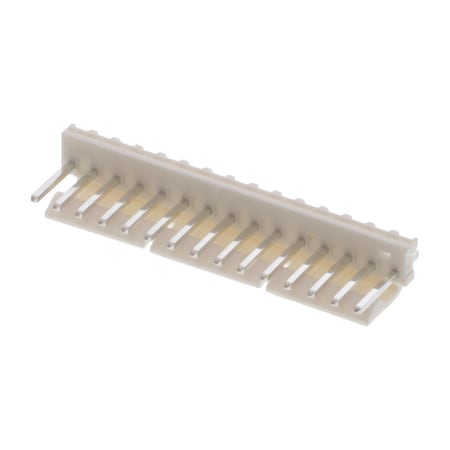

Molex / Waldom 26-60-4150 Connector Headers and PCB Receptacles

Molex / Waldom 26-60-4150 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
<a target="_blank" href.//www.ibselectronics.co.
Alternate Part No.538-26-60-4150
ApplicationsAutomotive, General Pur.
Base Product Number002660
BrandMolex
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Length - Mating0.450" (11.43mm)
Contact Length - Post0.140" (3.56mm)
Contact MaterialBrass, -
Contact PlatingTin
Contact ShapeSquare
Contact TypeMale Pin
Current Rating7 A
Current Rating (Amps)-
DescriptionCONN HEADER VERT 15POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM13467-ND
Factory Pack Quantity125
Fastening TypeFriction Lock
Features-
Housing MaterialPolyester
Ingress Protection-
Insulation ColorNatural
Insulation Height0.446" (11.33mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerMolex
Manufacturer Part No.26-60-4150
Manufacturer Product Nu.0026604150
Manufacturer Standard L.30 Weeks
Mated Stacking Heights-
MaterialBrass
Material Flammability R.UL94 V-0
MfrMolex
Mounting AngleVertical
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Positions15
Number of Positions Loa.All
Number of Rows1
Operating Temperature-
Overall Contact Length0.720" (18.29mm)
PackageBulk
Package Quantity1
PackagingBulk, Bag
Part # Aliases0026604150 41791-0015
Pitch3.96 mm
Pitch - Mating0.156" (3.96mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
SeriesKK396, 41791, 41791
ShroudingShrouded - 1 Wall
StyleBoard to Board or Cable
TerminationSolder
Termination StyleSolder, Through Hole
TradenameKK
TypePin Strip
Voltage Rating250 V, -

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomIBS Electronics26-60-41501.06194MOLEX 1.06 @ 1
Onlinecomponents.com26-60-41501.1616MOLEX / WALDOM1.16 @ 1
RS Delivers170-72231.6764194Molex1.6764 @ 1
HotendaH13718921.99194Molex1.99 @ 1
thumbzoomRadwell26-60-41502.2550044MOLEX2.25 @ 500
thumbzoomDigi-Key31596642.3512621Molex2.35 @ 1
thumbzoomNewark01AH09042.4141MOLEX2.4 @ 1
thumbzoomswatee.com26-60-41502.681462Molex2.68 @ 1
thumbzoomZoroG2762624101.46041Molex101.4 @ 60
