Molex 26-60-4160

mpn0026604160
brandname: Molex
manufacturername: Molex

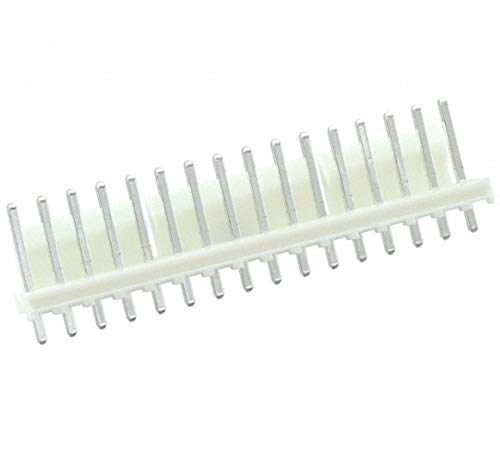

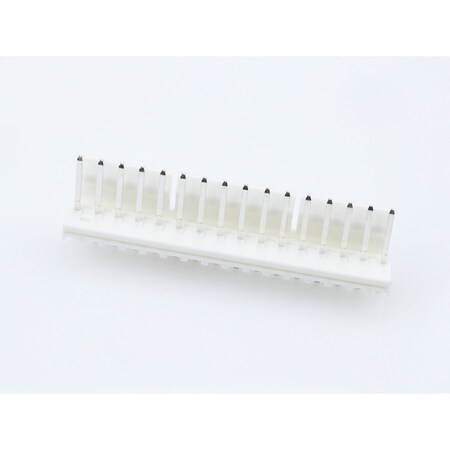

MOLEX 26-60-4160 16 Pin Single Row Locking Header Connector New QTY-25

MOLEX 26-60-4160 16 Pin Single Row Locking Header Connector New QTY-25

zoom

Brand: Molex
PartNumber: 26-60-4160
Model: 26-60-4160
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	41791-0016
Applications	Automotive, General Pur.
Base Product Number	002660
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.450" (11.43mm)
Contact Length - Post	0.140" (3.56mm)
Contact Material	-
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 16POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM13468-ND
Family Name	KK 396
Fastening Type	Friction Lock
Features	-
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.446" (11.33mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0026604160
Manufacturer Standard L.	19 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	16
Number of Contacts	16
Number of Positions	16
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.720" (18.29mm)
Package	Bulk
Package Quantity	1
Pitch	3.96 mm (0.156")
Pitch - Mating	0.156" (3.96mm)
Plating Material	Tin
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	-
Series	41791 Series, KK396, 41.
Shrouding	Shrouded - 1 Wall
Special Features	Not Low-Halogen
Style	Board to Board or Cable
Termination	Solder
Type	Vertical Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Verical	26-60-4160	1.15	28	422		Molex		1.15 @ 28
	Waldom	MOLEX 26-60-4160	1.35	40	1099		MOLEX		1.35 @ 40
	Onlinecomponents.com	26-60-4160	1.42	1	1417		MOLEX / WALDOM		1.42 @ 1
	Newark	05H9916	1.75	40	1094		MOLEX		1.75 @ 25
	NEP Electronics	26-60-4160	1.8676	40	1094		Molex		1.8676 @ 40
	us.rs-online.com	70091419	2.4	1	41		Molex Incorporated		2.4 @ 1
	Hotenda	H1372138	2.42	1	41		Molex		2.42 @ 1
	Mouser	538-26-60-4160	2.68	1	2000		Molex		2.68 @ 1
	Digi-Key	3159665	2.89	1	6595		Molex		2.89 @ 1
	RS Delivers	679-5723	3.408	1	50		Molex		3.408 @ 1
	Radwell	26-60-4160	5.0	1	41		MOLEX		5.0 @ 1
	Zoro	G2759328	95.6	40	41		Molex		95.6 @ 40
