Molex / Waldom 26-60-4180 Connector Headers and PCB Receptacles

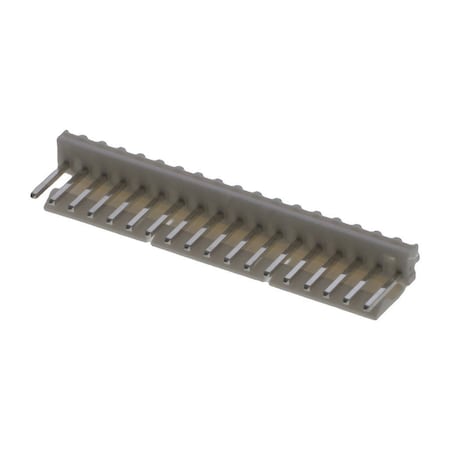

Molex / Waldom 26-60-4180 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Mfr Part Numb.41791-0018
ApplicationsAutomotive, General Pur.
Base Product Number002660
CategoryConnectors, Interconnec.
ColorNatural
Connector TypeHeader
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Length - Mating0.450" (11.43mm)
Contact Length - Post0.140" (3.56mm)
Contact Material-
Contact ShapeSquare
Contact TypeMale Pin
Current Rating7 A
Current Rating (Amps)-
DescriptionCONN HEADER VERT 18POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM13469-ND
Family NameKK 396
Fastening TypeFriction Lock
Features-
Flammability RatingUL 94V-0
Hole Center to Center3.96 mm
Ingress Protection-
Insulation ColorNatural
Insulation Height0.446" (11.33mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerMolex
Manufacturer Product Nu.0026604180
Manufacturer Standard L.24 Weeks
Mated Stacking Heights-
MaterialPolyester
Material Flammability R.UL94 V-0
Max. Temp.235?C
Max. Voltage250V
MfrMolex
Mounting TypeThrough Hole
Number of Circuits18
Number of Contacts18
Number of Positions18
Number of Positions Loa.All
Number of Rows1
Operating Temperature-
OrientationVertical
Overall Contact Length0.720" (18.29mm)
PackageBulk
Package Quantity1
Pitch3.96 mm (0.156")
Pitch - Mating0.156" (3.96mm)
Plating MaterialTin
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating-
Series41791 Series, KK396, 41.
ShroudingShrouded - 1 Wall
Special FeaturesNot Low-Halogen
StandardsCSA Certified; UL E29179
StyleBoard to Board or Cable
Terminal TypeThrough Hole
TerminationSolder
TypeVertical Header
Voltage Rating-
