- mpn0192020013
- brandname: Molex
- manufacturername: Molex

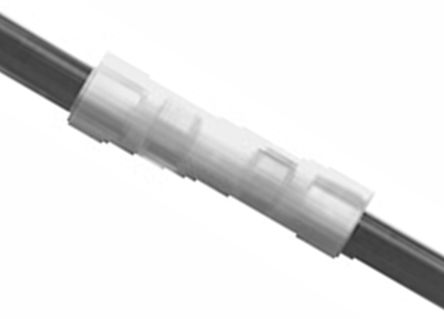

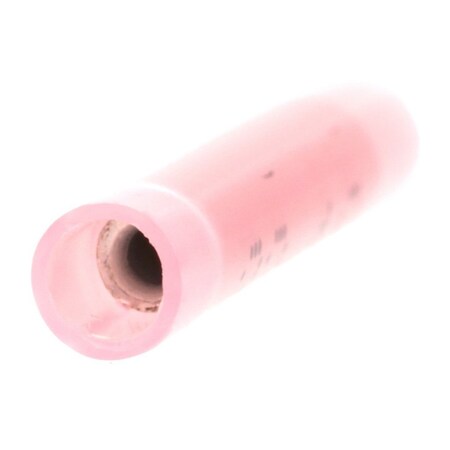

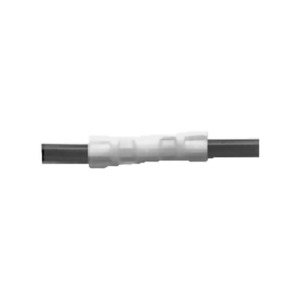

Molex / Waldom 19202-0013 Connector Terminals
- Brand: Molex / Waldom
- PartNumber: 19202-0013
- PackageQuantity: 1
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | AS-N-345 |
| Angle | Straight |
| Barrel Type | Closed - Brazed |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Red |
| Color - Resin | Red |
| Colour | Red |
| Contact Material | Copper |
| Contact Plating | Tin |
| CSA | LR18689 |
| Family Name | Butt |
| Features | Red |
| Flammability | 94V-2 |
| Insulation | Insulated, Nylon (PA), . |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Material - Metal | Copper |
| Material - Plating Mati. | Tin |
| Material - Plating Term. | Tin |
| Mfr | Molex |
| Number of Wire Entries | Crimp |
| Overall Length | 26.29mm |
| Package | Active |
| Package Quantity | 1 |
| Part Status | Butt Splice, Inline, In. |
| Plating Material | Tin |
| Series | Bulk, 19202 Series, 192. |
| Special Features | Low-Halogen |
| Splice Type | Butt |
| Temperature Range - Ope. | -55? to +105?C |
| Terminal Type | 2 |
| Termination | 18-22 AWG, Solderless |
| Type | Butt Splice |
| UL | E32244 |
| UPC Code | 800753047396 |
| Voltage - Maximum | 600V |
| Wire Gauge | Fully Insulated |
| Wire Insulation Diameter | 3.56mm max. |
| Wire Size | 22 ? 18 AWG, 18-22 AWG |
| Wire Size AWG | 18, 20, 22 |
| Wire Size mm? | 0.35-0.80 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Power and Signal Group | 0192020013 | 0.0657 | 1000 | 1000 | | Molex | | 0.0657 @ 1000 |
| Radwell | 19202-0013 | 0.08 | 4000 | 1000 | | MOLEX | | 0.08 @ 4000 |
| TTI | 19202-0013 | 0.081 | 100 | 1000 | | Molex | | 0.081 @ 1000 |
| Waldom | MOLEX 19202-0013 | 0.083 | 650 | 12895 | | MOLEX | | 0.083 @ 1000 |
| Onlinecomponents.com | 19202-0013 | 0.084 | 1 | 15824 | | MOLEX / WALDOM | | 0.084 @ 1000 |
 | Digi-Key | WM18731-ND | 0.12915 | 1 | 1000 | | Molex | | 0.12915 @ 1000 |
| Electronic Connector Co | 19202-0013 | 0.13 | 1 | 1000 | | MOLEX | | 0.13 @ 1000 |
| Hotenda | H1641333 | 0.15158 | 1 | 11826 | | Molex | | 0.15158 @ 1000 |
 | jensentools.com | 10155479 | 0.18 | 1 | 1000 | | Molex | | 0.18 @ 1000 |
 | RS Delivers | 822-1432 | 0.1824 | 100 | 1000 | | Molex | | 0.1824 @ 1000 |
 | Newark | 55H5475 | 0.209 | 1 | 3983 | | MOLEX | | 0.209 @ 1000 |
| us.rs-online.com | 70111039 | 0.3022 | 6 | 2311 | | Molex Woodhead/Brad | | 0.3022 @ 1000 |
 | Zoro | G2753159 | 97.5 | 750 | 1000 | | Molex | | 97.5 @ 1000 |
