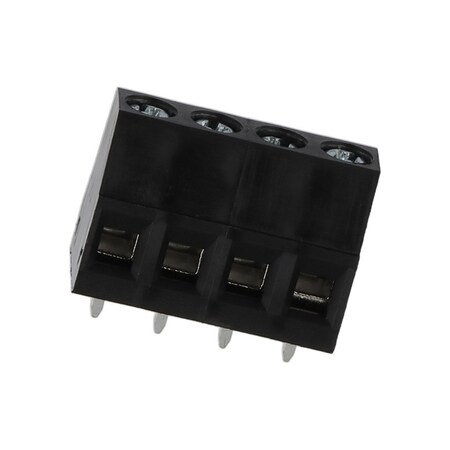

Molex / Waldom 39544-3004 Connector Terminal Blocks
- Brand: Molex / Waldom
- PartNumber: 39544-3004
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Part No. | 538-39544-3004 |
| Base Product Number | 039544 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Circuits (Loaded) | 4 |
| Clamp Material - Plating | Brass - Nickel Plated |
| Color | Black |
| Contact Material - Plat. | Brass - Tin Plated |
| Current | 15 A |
| Current - Maximum per C. | 15.0A |
| Current Rating | 15 A |
| Description | TERM BLK 4P SIDE ENT 5.. |
| Detailed Description | 4 Position Wire to Boar. |
| Digi-Key Part Number | WM7855-ND |
| Duration at Max. Proces. | 5 |
| Entry Angle | Horizontal |
| Family Name | ESE |
| Features | - |
| Flammability Rating | UL 94 V-0 |
| Height | 14.4 mm |
| Housing Material | Polyamide (PA66), Nylon. |
| Length | 20.32 mm |
| Lock to Mating Part | None |
| Manufacturer | Molex |
| Manufacturer Part No. | 39544-3004 |
| Manufacturer Product Nu. | 0395443004 |
| Manufacturer Standard L. | 17 Weeks |
| Mating Orientation | Horizontal with Board |
| Mfr | Molex |
| Mounting Angle | Vertical |
| Mounting Type | Through Hole |
| Number of Circuits | 4 |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature | -40?C ~ 105?C |
| Orientation | Vertical |
| Package | Bulk |
| Package Quantity | 1 |
| Panel Mount | No |
| Part # Aliases | 0395443004 |
| PC Tail Length | 3.00mm |
| PCB Thickness - Recomme. | 2.00mm |
| Pitch | 0.200" (5.08mm), 5.08 mm |
| Pitch - Mating Interface | 5.08mm |
| Pitch - Termination Int. | 5.08mm |
| Positions Per Level | 4 |
| Process Temperature max. | 260 |
| Product Category | Fixed Terminal Blocks |
| Product Status | Active |
| Screw Material - Plating | Steel - Zinc Plated |
| Screw Thread | M3 |
| Series | 39544, 39544 Series, Eu. |
| Stackable | No |
| Temperature Range - Ope. | -40? to +105?C |
| Torque - Screw | 0.51 Nm (4.5 Lb-In) |
| Tradename | Eurostyle |
| UL | E48521 |
| Voltage | 300 V |
| Voltage - Maximum | 300V |
| Voltage Rating | 300 V |
| Wire Gauge | 12-30 AWG |
| Wire Gauge Max | 12 |
| Wire Gauge Min | 22 |
| Wire Gauge Range | 22-12 |
| Wire Orientation | Horizontal |
| Wire Size AWG | 12, 14, 16, 18, 20, 22 |
| Wire Size mm? | 0.33-3.31 |
| Wire Termination | Screw - Rising Cage Cla. |
