Molex / Waldom 39910-0110

B00LS9OC7E

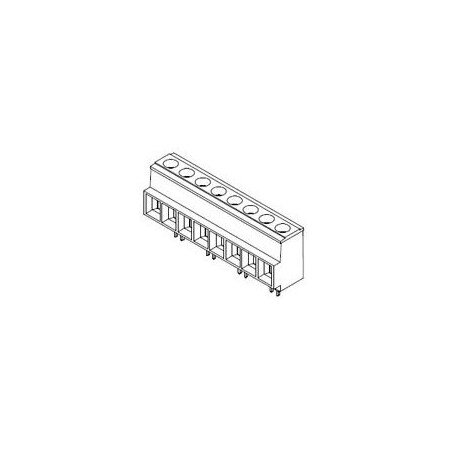

Molex / Waldom 39910-0110 Connector Terminal Blocks

Molex / Waldom 39910-0110 Connector Terminal Blockszoom

Attributes

Key Value
CategoryConnectors, Interconnec.
Circuits (Loaded)10
Color - ResinBlack
Current - Maximum per C.60.0A
DescriptionNEO 10.16MM HI-PWR 60A .
Detailed DescriptionPosition Wire to Board .
Digi-Key Part Number2266-39910-0110-ND
Flammability94V-0
Lock to Mating PartNone
ManufacturerMolex
Manufacturer Product Nu.39910-0110
Material - MetalBrass, Copper
Material - Plating Mati.Tin
Material - Plating Term.Tin
Material - ResinPolyester
MfrMolex
PackageBox
Panel MountNo
PC Tail Length4.10mm
PCB RetentionNone
Pitch - Mating Interface10.16mm
Pitch - Termination Int.10.16mm
Plating min - Terminati.3.810?m
Polarized to Mating PartYes
Product StatusActive
Series*
ShroudedFully
StackableNo
Surface Mount Compatibl.No
Temperature Range - Ope.130?C
Termination Interface: .Through Hole
Voltage - Maximum600V
Wire Size AWG10, 12, 14, 16, 18, 6, 8
Wire Size mm?0.75-10.00

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 39910-011014.14623MOLEX14.1 @ 4
Verical39910-011014.933309Molex14.93 @ 3
Newark58H979416.762882MOLEX16.76 @ 288
thumbzoomjensentools.com1018903220.1212Molex20.12 @ 2
thumbzoomDigi-Key1471002023.124625Molex23.12 @ 4
Onlinecomponents.com39910-011023.561261MOLEX / WALDOM23.56 @ 2
thumbzoomRadwell39910-011034.016MOLEX34.0 @ 2
thumbzoomZoroG10591817783.1612Molex83.16 @ 2
