Molex 52418-0510

B00GQQYRYW

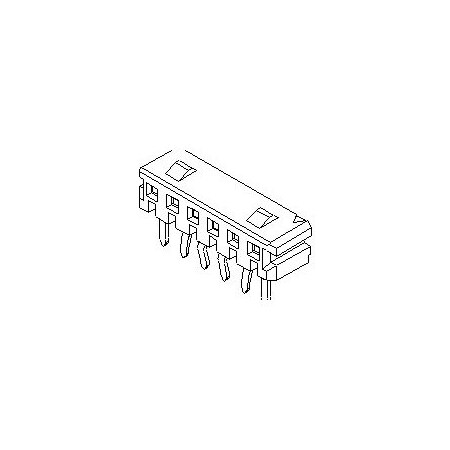

Molex Header Connector,PCB Mount,Plug,5 Contacts,SKT,0.079 Pitch,pc Tail Terminal,Guide Slot Rohs Compliant: Yes - 52418-0510

Molex Header Connector,PCB Mount,Plug,5 Contacts,SKT,0.079 Pitch,pc Tail Terminal,Guide Slot Rohs Compliant: Yes - 52418-0510zoom

Attributes

Key Value
ApplicationBoard-to-Board, Signal
Applications-
Base Product Number052418
CategoryConnectors, Interconnec.
ColorNatural
Connector TypeReceptacle
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Post0.126" (3.20mm)
Contact MaterialPhosphor Bronze
Contact Plating Thickne.0.914 ?m
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating1.5 A
Current Rating (Amps)1.5A
DescriptionCONN RCPT 5POS 0.079 TI.
Detailed Description5 Position Receptacle C.
Digi-Key Part Number900-0524180510-ND
Fastening TypeFriction Lock
Features-
Hole Center to Center2 mm
Ingress Protection-
Insulation ColorNatural
Insulation Height0.124" (3.14mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerMolex
Manufacturer Product Nu.0524180510
Manufacturer Standard L.20 Weeks
Mated Stacking Heights-
MaterialPolyester
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage125V
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Contacts5
Number of Positions5
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
PackageBulk
Package Quantity1
Pitch - Mating0.079" (2.00mm)
Product StatusActive
Row Spacing - Mating-
Series52418
StandardsUL E29179
StyleBoard to Board
Sub-CategoryPCB Receptacles
Terminal FinishTin Plated
Terminal TypeThrough Hole - Kinked P.
TerminationPress-Fit, Solder
Voltage Rating125VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 52418-05100.2920016960MOLEX0.29 @ 200
Onlinecomponents.com52418-05100.29513800MOLEX / WALDOM0.295 @ 1
thumbzoomDigi-Key4811010.341210400293Molex0.3412 @ 10400
thumbzoomjensentools.com101932230.391293Molex0.39 @ 1
Newark92M60640.838116960MOLEX0.838 @ 1
thumbzoomRadwell52418-05101.25200293MOLEX1.2 @ 5200
thumbzoomZoroG80582170890.01293Molex90.0 @ 1
