Molex 533750310

B07QY5D767

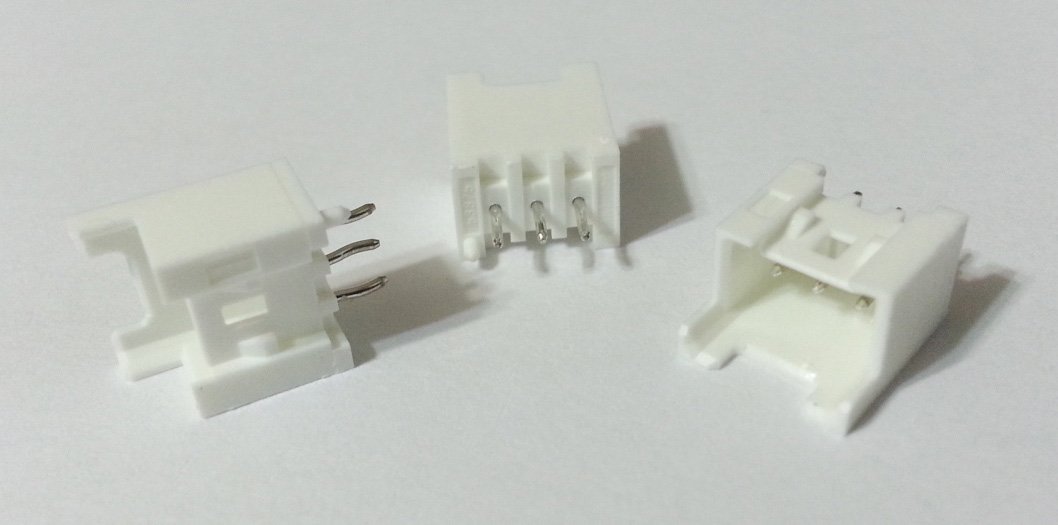

533750310, Conn Shrouded Header (4 Sides) HDR 3 POS 2.5mm Solder ST Thru-Hole Mini-Lock Bag (100 Items)

533750310, Conn Shrouded Header (4 Sides) HDR 3 POS 2.5mm Solder ST Thru-Hole Mini-Lock Bag (100 Items)zoom

Attributes

Key Value
ApplicationFor PCB
ApplicationsGeneral Purpose, Indust.
Base Product Number053375
CategoryConnectors, Interconnec.
Circuits (Loaded)3
Circuits (maximum)3
Color - ResinNatural
Connector ShapeSquare
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Finish Thicknes.-
Contact Length - Mating0.157" (4.00mm)
Contact Length - Post0.134" (3.40mm)
Contact MaterialPhosphor Bronze
Contact ShapeCircular
Contact TypeMale Pin
CSALR19980
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 3POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM9816-ND
Fastening TypeLocking Ramp
FeaturesBoard Guide
Flammability94V-0
Ingress Protection-
Insulation ColorWhite
Insulation Height0.453" (11.50mm)
Insulation MaterialPolybutylene Terephthal.
IP RatingNone
Keying to Mating PartYes
Lock to Mating PartYes
ManufacturerMolex
Manufacturer Product Nu.0533750310
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
Material - Plating Mati.Tin
Material - Plating Term.Tin
Material - ResinPolyester
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Positions3
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
OrientationVertical
Overall Contact Length-
PackageBag
Part StatusActive
PC Tail Length3.40mm
PCB LocatorYes
PCB RetentionYes
PCB Thickness - Recomme.1.60mm
Pitch - Mating0.098" (2.50mm)
Pitch - Mating Interface2.50mm
Polarized to Mating PartYes
Polarized to PCBYes
Product StatusActive
Row Spacing - Mating-
SeriesMini-Lock 53375
ShroudedFully
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
Temperature Range - Ope.-40? to +105?C
TerminationKinked Pin, Solder
Termination Interface: .Through Hole - Kinked P.
ULE29179
Voltage - Maximum250V AC (RMS)/DC
Voltage Rating250V
