Molex 53375-0410

B00OVEOHR8

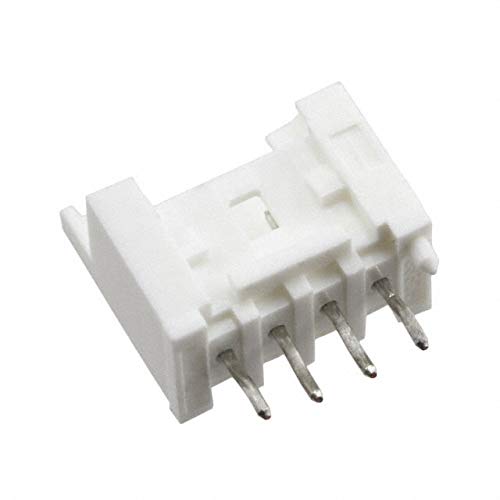

Molex Connector, Header, 4Pos, 1Row, 2.5Mm - 53375-0410

Molex Connector, Header, 4Pos, 1Row, 2.5Mm - 53375-0410zoom

Attributes

Key Value
Alternate Mfr Part Numb.7206400
Alternate Part No.538-53375-0410
ApplicationFor PCB
ApplicationsGeneral Purpose, Indust.
ASINB00OVEOHR8
Base Product Number053375
BrandMolex
CategoryConnectors, Interconnec.
Circuits (Loaded)4
Circuits (maximum)4
ColorNatural
Color - ResinNatural
Connector ShapeSquare
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Finish Thicknes.-
Contact Length - Mating0.157" (4.00mm)
Contact Length - Post0.134" (3.40mm)
Contact MaterialPhosphor Bronze
Contact PlatingTin
Contact ShapeCircular
Contact TypeMale Pin
CSALR19980
Current - Maximum per C.3.0A
Current Rating3 A
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 4POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM4269-ND
Durability (mating cycl.30
Family NameMini-Lock
Fastening TypeLocking Ramp
FeaturesBoard Guide
Housing MaterialPolyester
Ingress Protection-
Insulation ColorWhite
Insulation Height0.453" (11.50mm)
Insulation MaterialPolybutylene Terephthal.
IP RatingNone
Item model number53375-0410
Keying to Mating PartYes
Lock to Mating PartYes
ManufacturerMolex
Manufacturer Part No.53375-0410
Manufacturer Product Nu.0533750410
Manufacturer Standard L.13 Weeks
Mated Stacking Heights-
Material - Plating Mati.Tin
Material - Plating Term.Tin
Material - ResinPolyester
Material Flammability R.UL94 V-0
MfrMolex
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Circuits4
Number of Contacts4
Number of Positions4
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
OrientationVertical
Overall Contact Length-
PackageBag
PackagingBulk
Part # Aliases0533750410
Part StatusActive
PC Tail Length3.40mm
PCB LocatorYes
PCB RetentionYes
PCB Thickness - Recomme.1.60mm
Pitch2.50 mm (0.098"), 2.5 mm
Pitch - Mating0.098" (2.50mm)
Plating MaterialTin
Polarized to Mating PartYes
Polarized to PCBYes
Primary TypeBoard Mount
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
Series53375 Series, 53375, Mi.
ShroudedFully
ShroudingShrouded - 4 Wall
Special FeaturesNot Low-Halogen
StyleBoard to Cable/Wire
Temperature Range - Ope.-40? to +105?C
TerminationKinked Pin, Solder
Termination Interface: .Through Hole - Kinked P.
Termination StyleThrough Hole - Kinked P.
TradenameMini-Lock
TypeVertical Header, Shroud.
ULE29179
Voltage - Maximum250V AC (RMS)/DC
Voltage Rating250V, 250 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet05337504100.18315801Molex0.183 @ 100
WaldomMOLEX 53375-04100.24525015366MOLEX0.245 @ 250
Onlinecomponents.com53375-04100.251402835Molex0.25 @ 140
thumbzoomjensentools.com101938470.3115366Molex0.3 @ 100
Newark29AC01870.31814400100MOLEX0.318 @ 14400
thumbzoomDigi-Key24212100.34931103537Molex0.3493 @ 100
us.rs-online.com703746830.521100Molex Incorporated0.52 @ 100
RS Delivers720-6400P0.82818030Molex0.828 @ 100
thumbzoomswatee.com53375-04101.0112962Molex1.01 @ 100
thumbzoomMisumi USA53375-04101.251100Molex1.25 @ 100
thumbzoomRadwell53375-04101.61100MOLEX1.6 @ 100
AmazonSCB00OVEOHR88.231100MOLEX0.018.23 @ 100
thumbzoomTMEMX-53375-041013.93121034MOLEX13.931 @ 100
thumbzoomZoroG4036143132.5250100Molex132.5 @ 250
