55959-1230

mpn0559591230
brandname: Molex
manufacturername: Molex

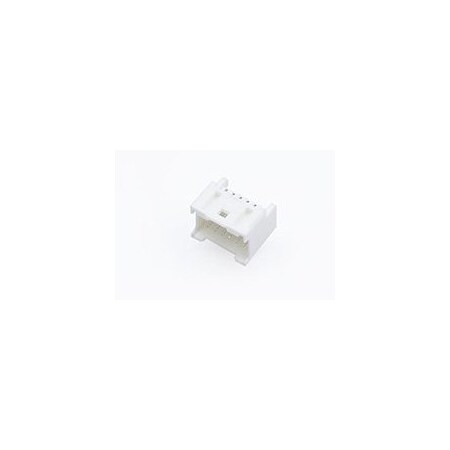

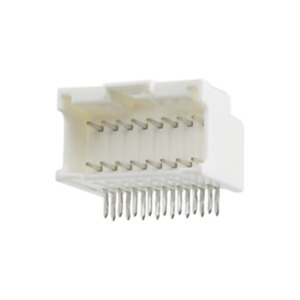

Headers & Wire Housings 12 Ckt R.A. Header (100 pieces)

PartNumber: 55959-1230
PackageQuantity: 100
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Alternate Mfr Part Numb.	55959-1230
Application	For PCB, Signal ; Wire-.
Applications	General Purpose, Indust.
Base Product Number	055959
Body Orientation	Right Angle
Brand	Molex
Category	Connectors, Interconnec.
Color	Natural
Connection Direction	Angle
Connector Shape	Square
Connector System	Wire to Board
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	-
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	0.126" (3.20mm)
Contact Material	Brass
Contact Plating	Tin
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A, 3.0A
Current Rating (Amps)	-
Description	CONN HEADER R/A 12POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM12307-ND
Family Name	MicroClasp
Fastening Type	Latch Holder
Features	-
Flammability Rating	UL 94V-0
Hole Center to Center	2 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.461" (11.70mm)
Insulation Material	Polybutylene Terephthal.
Manufacturer	Molex
Manufacturer Product Nu.	0559591230
Manufacturer Standard L.	11 Weeks
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	105?C
Max. Voltage	250V AC/DC
Mfr	Molex
Mounting Type	Through Hole, Through H.
Number of Circuits	12
Number Of Contacts	12
Number of Contacts	12
Number of Positions	12
Number of Positions Loa.	All
Number of Rows	2
Number Of Rows	2
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Tray
Pitch	2.0mm, 2.00 mm (0.079")
Pitch - Mating	0.079" (2.00mm)
Plating Material	Tin
Primary Type	Board Mount
Product Status	Active
Row number	2
Row Spacing - Mating	0.197" (5.00mm)
Series	55959 Series, MicroClas.
Shrouded/Unshrouded	Shrouded
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Standards	UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Kinked Pin, Solder, Thr.
Termination Method	Solder
Type	Right Angle Header
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Newark	59J0969	0.188	1	2973	MOLEX	0.188 @ 50
jensentools.com	10194383	0.67	1	50	Molex	0.67 @ 50
RS Delivers	161-9464	0.7536	150	50	Molex	0.7536 @ 150
us.rs-online.com	70372932	0.8	1	100	Molex Incorporated	0.8 @ 50
Hotenda	H1369657	0.8204	1	50	Molex	0.8204 @ 50
Avnet	0559591230	0.845	1	2395	Molex	0.845 @ 50
TME	MX-55959-1230	0.88	3	50	MOLEX	0.88 @ 50
Digi-Key	3263432	0.91	1	34585	Molex	0.91 @ 50
Misumi USA	55959-1230	1.47	1	50	Molex	1.47 @ 50
Radwell	55959-1230	1.8	2400	50	MOLEX	1.8 @ 2400
Zoro	G2766133	157.5	1	50	Molex	157.5 @ 50
