Attributes
| Key ^ | Value |
|---|---|
| Base Product Number | 076410 |
| Category | Connectors, Interconnects |
| Color | Black |
| Connector Style | Impact, Guide Right |
| Connector Type | Header, Male Pins |
| Connector Usage, Current Rating (Amps) | - |
| Contact Finish | Gold Plated |
| Contact Finish Thickness | 30.0?in (0.76?m) |
| Contact Finish, Plating Material | Gold |
| Contact Layout, Typical | 30 Differential Pairs |
| Contact Plating Thickness | 0.762 ?m |
| Current Rating | 0.75 A |

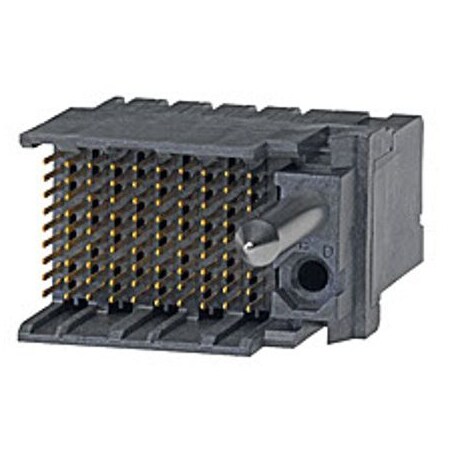

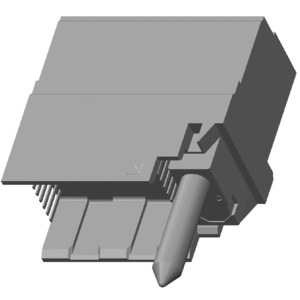

| Description | CONN HDR IMPACT 90POS EDGE MNT |
| Detailed Description | 90 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Black Impact, Guide Right |
| Digi-Key Part Number | 0764105107-ND |
| Family Name | Impact |
| Features | Board Guide |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 1.9 mm |
| Impedance | 100 Ohm |
| Manufacturer Product Number | 0764105107 |
| Manufacturer Standard Lead Time | 13 Weeks |
| Manufacturer, Mfr | Molex |
| Material | High Temperature Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 85?C |
| Max. Voltage | 30V AC/DC |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Circuits, Number of Contacts, Number of Positions | 90 |
| Number of Columns | 10 |
| Number of Pairs | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 9 |
| Operating Temperature | -55?C ~ 85?C, -55 - 85 C |
| Orientation | Right Angle |
| Package | Tray |
| Pitch | 0.053" (1.35mm) |
| Primary Type | Impact Backplane Connector And Cable Assembly System |
| Product Status | Active |
| Series | Impact 76410, 76410 Series |
| Standards | UL E29179 |
| Temperature Range | -55 to 85 C |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole - Compliant Pin |
| Termination | Through Hole, Press-Fit |
| Type | PCB Header |
| Voltage Rating | 30V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Master Electronics | 764105107 | 10.39 | 380.274 | 90 | 128 | Molex | 10.39 @ Qty: 90+ | |||
| Verical | 76410-5107 | 10.475 | 18.855 | 3 | 322 | Molex | 10.475 @ Qty: 3+ | |||
| Onlinecomponents.com | 76410-5107 | 10.73 | 10.73 | 1 | 616 | MOLEX / WALDOM | 10.73 @ Qty: 1+ | |||
| Electro Sonic | 764105107 | 11.0134 | 403.09044 | 90 | 644 | Molex | 11.0134 @ Qty: 90+ | |||
| Waldom | MOLEX 76410-5107 | 11.96 | 31.096 | 5 | 260 | MOLEX | 11.96 @ Qty: 5+ | |||
 | Digi-Key | 2789783 | 14.45178 | 1049.199228 | 180 | In Stock | Molex | 14.45178 @ Qty: 180+ | ||
 | jensentools.com | 10196806 | 15.95 | 15.95 | 1 | 260 | Molex | 15.95 @ Qty: 1+ | ||
| Newark | 78AC2152 | 16.33 | 16.33 | 1 | 260 | MOLEX | 16.33 @ Qty: 1+ | |||
| Chip One Stop Global | C1S516502314306 | 19.2 | 702.72 | 90 | 644 | Molex | 19.2 @ Qty: 90+ | |||
| us.rs-online.com | 71466388 | 21.5 | 21.5 | 1 | In Stock | Molex Incorporated | 21.5 @ Qty: 1+ | |||
 | Zoro | G305926644 | 75.45 | 75.45 | 1 | In Stock | Molex | 75.45 @ Qty: 1+ | ||
| AmazonSC | B07QMXFK62 | 139.25 | 139.25 | 1 | In Stock | Molex / Waldom | 139.25 @ Qty: 1+ |
