- mpn0875681693
- brandname: Molex
- manufacturername: Molex

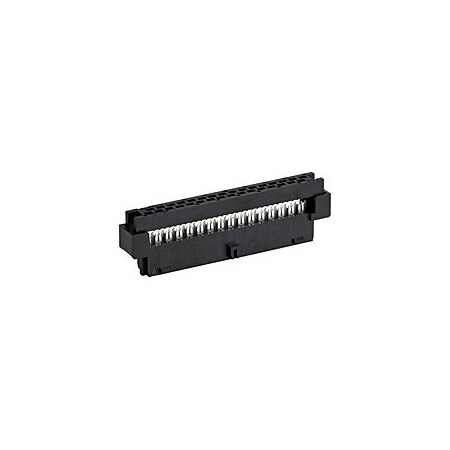

Molex / Waldom 87568-1693 Connector Headers and PCB Receptacles
- Brand: Molex / Waldom
- PartNumber: 87568-1693
- PackageQuantity: 1
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 87568-1693 |
| Alternate Part No. | 538-87568-1693 |
| Base Product Number | 087568 |
| Brand | Molex |
| Cable Termination | IDC, Ribbon Cable |
| Category | Connectors, Interconnec. |
| Color | 2, Black |
| Connector Type | Receptacle, Female, Fem. |
| Contact Finish | 15.0?in (0.38?m), Gold . |
| Contact Finish Thickness | 15.0?in (0.38?m), Black |
| Contact Gender | Socket (Female) |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Contact Type | Female Socket, 16 |
| Current Rating | 1 A |
| Description | CONN RCPT 16POS IDC 28A. |
| Detailed Description | 16 Position Rectangular. |
| Digi-Key Part Number | WM14316-ND |
| Fastening Type | IDC, Locking Ramp |
| Features | Feed Through, Polarizin. |
| Flammability Rating | UL 94V-0 |
| Gender | Female |
| Hole Center to Center | 2 mm |
| Housing Material | Polyester |
| Manufacturer | Molex |
| Manufacturer Part No. | 87568-1693 |
| Manufacturer Product Nu. | 0875681693 |
| Manufacturer Standard L. | 25 Weeks |
| Material | Polyester |
| Max. Temp. | 85?C |
| Max. Voltage | 125V |
| Mfr | Molex |
| Mounting Type | Free Hanging (In-Line),. |
| Number of Circuits | 16 |
| Number of Contacts | 16 |
| Number of Positions | 0.079" (2.00mm), 16 |
| Number of Rows | 2 |
| Package | Active, Tray |
| Package Quantity | 1 |
| Packaging | Tray |
| Part # Aliases | 0875681693 |
| Part Status | Receptacle |
| Pitch | 2 mm, 0.079" (2.00mm), . |
| Plating Material | Gold |
| Primary Type | Cable Connector |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Wire Housings |
| Row Spacing | Free Hanging (In-Line),. |
| Series | Milli-Grid Series, Tray. |
| Special Features | Not Low-Halogen |
| Standards | CSA Certified; UL E29179 |
| Terminal Type | IDT or Pierce |
| Termination | IDC |
| Termination Style | IDC |
| Tradename | Milli-Grid |
| Type | Receptacle Housing, Rec. |
| Voltage Rating | 125 V |
| Wire Gauge | 28, Feed Through, Polar. |
| Wire Range | 28 AWG |
| Wire Type | Ribbon Cable, 28 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | 87568-1693 | 1.42 | 1 | 7070 | | MOLEX / WALDOM | | 1.42 @ 1 |
| Waldom | MOLEX 87568-1693 | 1.45 | 40 | 29472 | | MOLEX | | 1.45 @ 40 |
| Power and Signal Group | 87568-1693 | 1.5566 | 1960 | 64 | | Molex | | 1.5566 @ 1960 |
| Verical | 87568-1693 | 2.358 | 7 | 15870 | | Molex | | 2.358 @ 7 |
| Mouser | 538-87568-1693 | 2.59 | 1 | 2179 | | Molex | | 2.59 @ 1 |
 | Newark | 31Y6514 | 2.92 | 1 | 6965 | | MOLEX | | 2.92 @ 1 |
 | Digi-Key | 699262 | 3.19 | 1 | 24379 | | Molex | | 3.19 @ 1 |
 | TME | MX-87568-1693 | 3.27 | 1 | 230 | | MOLEX | | 3.27 @ 1 |
| RS Delivers | 896-7513 | 3.894 | 1 | 716 | | Molex | | 3.894 @ 1 |
 | swatee.com | 87568-1693 | 4.02 | 1 | 831 | | Molex | | 4.02 @ 1 |
| us.rs-online.com | 70747067 | 4.3 | 2 | 22 | | Molex Incorporated | | 4.3 @ 2 |
 | Zoro | G2747032 | 106.0 | 40 | In Stock | | Molex | | 106.0 @ 40 |
