Molex / Waldom 87760-3416

B00GQQU408

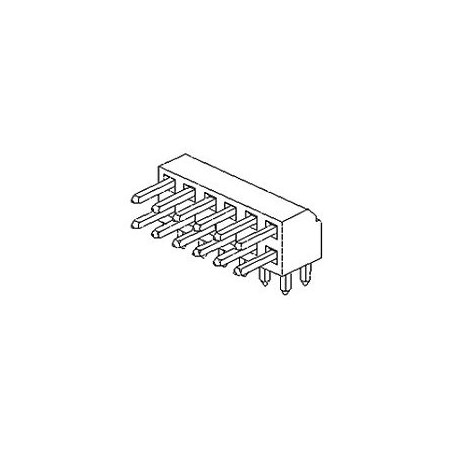

Molex / Waldom 87760-3416 Connector Headers and PCB Receptacles

Molex / Waldom 87760-3416 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number87760
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.78.7?in (2.00?m)
Contact Length - Mating0.157" (4.00mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)-
DescriptionCONN HEADER R/A 34POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number23-0877603416-ND
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.169" (4.30mm)
Insulation MaterialPolycyclohexylenedimeth.
ManufacturerMolex
Manufacturer Product Nu.0877603416
Manufacturer Standard L.15 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Positions34
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
PackageTray
Package Quantity1
Pitch - Mating0.079" (2.00mm)
Product StatusActive
Row Spacing - Mating0.079" (2.00mm)
SeriesMilli-Grid 87760
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 87760-34161.2451252MOLEX1.2 @ 45
Onlinecomponents.com87760-34161.3515048MOLEX / WALDOM1.35 @ 1
jensentools.com101977061.611252Molex1.6 @ 1
HotendaH13028852.46140Molex2.46 @ 1
Newark94M16732.7711252MOLEX2.77 @ 1
thumbzoomDigi-Key6991802.87165Molex2.87 @ 1
thumbzoomZoroG207811285.051In StockMolex85.05 @ 1
