Molex 90130-1118

B00GQRETEO

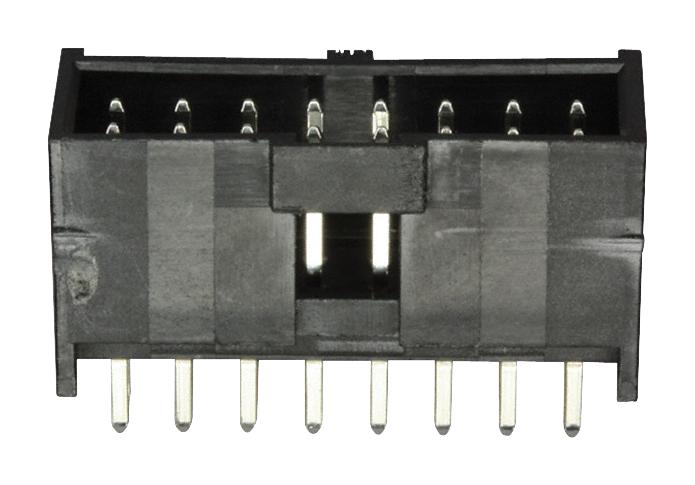

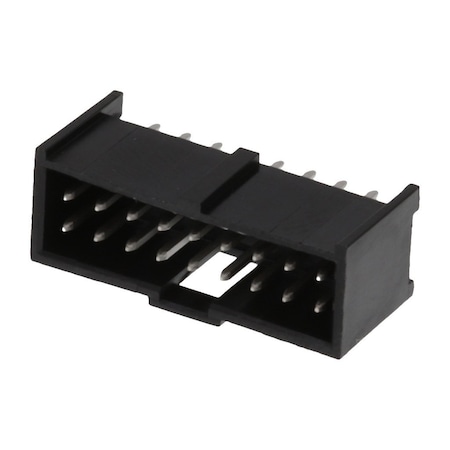

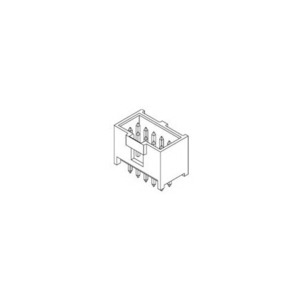

MOLEX - 90130-1118 - Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 18 Contacts, Through Hole Straight

MOLEX - 90130-1118 - Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 18 Contacts, Through Hole Straightzoom

Attributes

Key Value
Alternate Part No.538-90130-1118
BrandMolex
ColorBlack
Connectorsocket
Connector pinout layout2x9
Connector seriesC-Grid III
Contact FinishTin Plated
Contact MaterialBrass
Contact PlatingTin
Contact platingtinned
Contact Plating Thickne.3.048 ?m
Contacts pitch2.54mm
Current Rating3 A
Electrical mountingTHT
Flammability RatingUL 94V-0
Hole Center to Center2.54 mm
Housing MaterialPolyester
Kind of connectormale
ManufacturerMolex
Manufacturer Part No.90130-1118
MaterialPolyester
Max. Temp.235?C
Max. Voltage350V AC/DC
Number of Contacts18
Number of pins18
Number of Positions18
Number of Rows2
Package Quantity1
PackagingTray
Part # Aliases0901301118
Pitch2.54 mm
Product CategoryHeaders & Wire Housings
Product TypeHeaders
Series90130
Spatial orientationstraight
StandardsCSA Certified; UL E29179
Terminal FinishTin Plated
Terminal TypeThrough Hole
Termination StyleThrough Hole
TradenameC-Grid
TypeShrouded
Type of connectorrectangular
Voltage Rating350 VAC/DC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers213-48430.824412784Molex0.8244 @ 1
WaldomMOLEX 90130-11181.04553438MOLEX1.04 @ 55
thumbzoomTMEMX-90130-11181.159586MOLEX1.15 @ 95
thumbzoomjensentools.com101982191.3913438Molex1.39 @ 1
thumbzoomNEP Electronics90130-11181.4412553438Molex1.4412 @ 55
thumbzoomZoroG1059150081.795586Molex1.79 @ 55
HotendaH13001632.11186Molex2.11 @ 1
thumbzoomDigi-KeyWM8239-ND2.21186Molex2.21 @ 1
thumbzoomNewark01AH18012.612903MOLEX2.6 @ 1
thumbzoomswatee.com90130-11182.871593Molex2.87 @ 1
