Molex 90130-1120

mpn0901301120
brandname: MOLEX
manufacturername: MOLEX

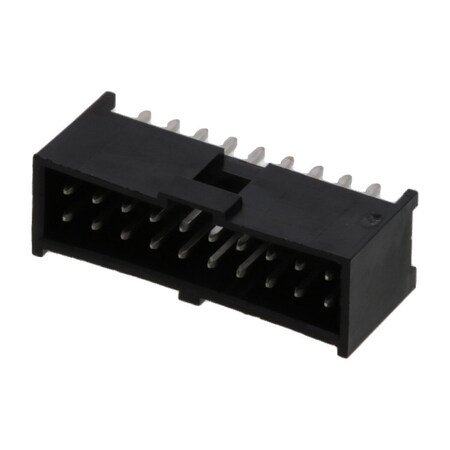

MOLEX 901301120 Connector Header Through Hole 20 Position 0.100" (2.54mm) New Lot Quantity-5

MOLEX 901301120 Connector Header Through Hole 20 Position 0.100" (2.54mm) New Lot Quantity-5

zoom

Brand: Molex
PartNumber: 90130-1120
Model: 90130-1120
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	90130-1120
Applications	Automotive, General Pur.
Base Product Number	090130
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 20POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM8240-ND
Family Name	C-Grid III
Fastening Type	Latch Holder
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.429" (10.90mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0901301120
Manufacturer Standard L.	13 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	20
Number of Contacts	20
Number of Positions	20
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.510" (12.95mm)
Package	Tray
Package Quantity	1
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Plating Material	Tin
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	90130 Series, C-Grid II.
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Style	Board to Cable/Wire
Termination	Solder
Type	Vertical Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 90130-1120	1.21	45	1490		MOLEX		1.21 @ 100
	Avnet	0901301120	1.414	880	2178		Molex		1.414 @ 880
	Onlinecomponents.com	90130-1120	1.53	20	100		Molex		1.53 @ 100
	jensentools.com	10198220	1.61	1	100		Molex		1.61 @ 100
	Newark	25M5870	1.77	1	4794		MOLEX		1.77 @ 100
	Digi-Key	760952	1.86263	1	15102		Molex		1.86263 @ 100
	us.rs-online.com	70091316	2.15	1	100		Molex Incorporated		2.15 @ 100
	RS Delivers	670-3285	3.4284	1	100		Molex		3.4284 @ 100
	Zoro	G2765923	92.25	45	100		Molex		92.25 @ 100
