Molex / Waldom 90130-1208

B00H6Z5L5Q

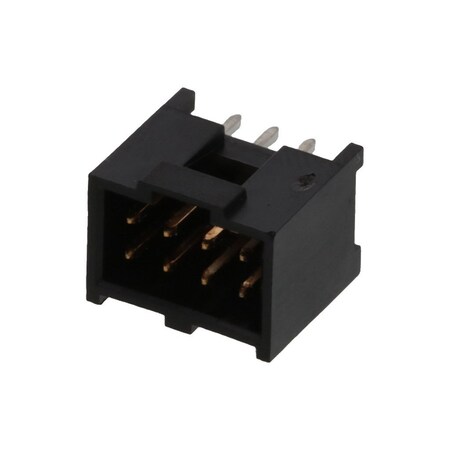

Molex / Waldom 90130-1208 Connector Headers and PCB Receptacles

Molex / Waldom 90130-1208 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Mfr Part Numb.901301208
ApplicationsAutomotive, General Pur.
ColorBlack
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Length - Mating0.266" (6.75mm)
Contact Length - Post0.114" (2.90mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A
Current Rating (Amps)-
Family NameC-Grid III
Fastening TypeLatch Holder
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.429" (10.90mm)
Insulation MaterialPolyester, Glass Filled
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Circuits8
Number of Contacts8
Number of Positions8
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
OrientationVertical
Overall Contact Length0.510" (12.95mm)
Package Quantity1
Part StatusActive
Pitch2.54 mm (0.100")
Pitch - Mating0.100" (2.54mm)
Plating MaterialGold
Primary TypeBoard Mount
Row Spacing - Mating0.100" (2.54mm)
Series90130 Series
ShroudingShrouded - 4 Wall
Special FeaturesNot Low-Halogen
StyleBoard to Cable/Wire
TerminationSolder
TypeVertical Header
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet09013012080.90412594Molex0.904 @ 1
Arrow90130-12081.03711183Molex1.037 @ 1
thumbzoomNewark26M79021.9611548MOLEX1.96 @ 1
us.rs-online.com703728692.11147Molex Incorporated2.11 @ 1
thumbzoomTMEMX-90130-12082.31154MOLEX2.31 @ 1
RS Delivers360-67522.58481975Molex2.5848 @ 1
thumbzoomZoroG7768832114.9555In StockMolex114.95 @ 55
