Molex 901301210

mpn0901301210
brandname: Molex
manufacturername: Molex

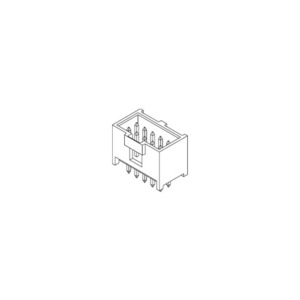

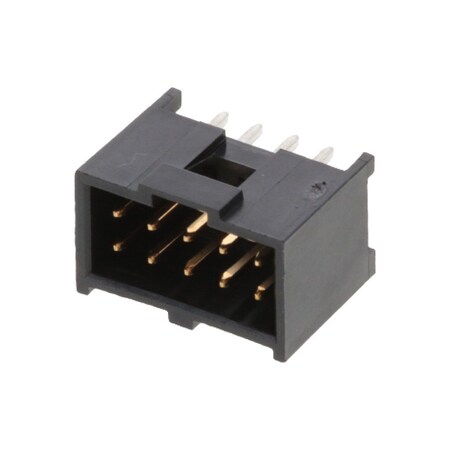

Headers & Wire Housings HDR 2X05P VT SHRD FULLY LOADED (1 piece)

Headers & Wire Housings HDR 2X05P VT SHRD FULLY LOADED (1 piece)

zoom

Brand: Molex
PartNumber: 901301210
Model: 90130-1210
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	90130-1210
Alternate Part No.	538-90130-1210
Applications	Automotive, General Pur.
Brand	Molex
Color	Black
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Plating	Gold
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Family Name	C-Grid III
Fastening Type	Latch Holder
Features	-
Housing Material	Polyester
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.429" (10.90mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Part No.	90130-1210
Mated Stacking Heights	-
Material	Brass
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	10
Number of Contacts	10
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.510" (12.95mm)
Package Quantity	1
Packaging	Tray
Part # Aliases	0901301210
Part Status	Active
Pin Spacing	0.1 in.
Pitch	2.54 mm, 2.54 mm (0.100.
Pitch - Mating	0.100" (2.54mm)
Plating Material	Gold
Primary Type	Board Mount
Product Category	Headers & Wire Housings
Product Type	Headers
Row Spacing - Mating	0.100" (2.54mm)
Series	90130 Series, 90130
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Style	Board to Cable/Wire
Termination	Solder
Termination Style	Through Hole
Tradename	C-Grid
Type	Header, Shrouded
Voltage Rating	350 VAC/DC, -

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	90130-1210	0.89	1	2239		MOLEX / WALDOM		0.89 @ 100
	Waldom	MOLEX 90130-1210	1.03	55	1660		MOLEX		1.03 @ 100
	jensentools.com	10198226	1.21	1	1530		Molex		1.21 @ 100
	Component Electronics	646B-10BN	1.23	1	100		Molex		1.23 @ 100
	TME	MX-90130-1210	1.31	1	100		MOLEX		1.31 @ 100
	Newark	93K5442	1.4	1	1680		MOLEX		1.4 @ 100
	us.rs-online.com	70091317	1.98	1	100		Molex Incorporated		1.98 @ 100
	RS Delivers	360-6746	2.0052	1	450		Molex		2.0052 @ 100
	swatee.com	90130-1210	2.52	1	1916		Molex		2.52 @ 100
	AmazonSC	B00DWID1LM	4.67	1	100		Molex		4.67 @ 100
	Zoro	G2753411	103.95	55	100		Molex		103.95 @ 100
