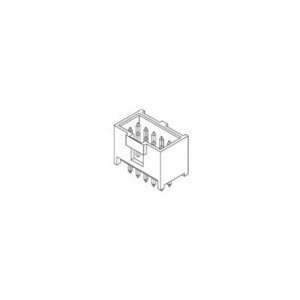

Molex / Waldom 90130-1214 Connector Headers and PCB Receptacles

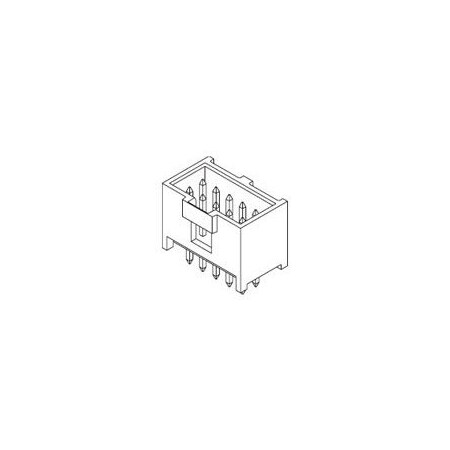

Molex / Waldom 90130-1214 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Mfr Part Numb.90130-1214
Alternate Part No.538-90130-1214
ApplicationsAutomotive, General Pur.
BrandMolex
ColorBlack
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Length - Mating0.266" (6.75mm)
Contact Length - Post0.114" (2.90mm)
Contact MaterialBrass
Contact PlatingGold
Contact Plating Thickne.0.381 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A
Current Rating (Amps)-
Family NameC-Grid III
Fastening TypeLatch Holder
Features-
Flammability RatingUL 94V-0
Hole Center to Center2.54 mm
Housing MaterialPolyester
Ingress Protection-
Insulation ColorBlack
Insulation Height0.429" (10.90mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerMolex
Manufacturer Part No.90130-1214
Mated Stacking Heights-
MaterialPolyester
Material Flammability R.UL94 V-0
Max. Temp.235?C
Max. Voltage350V AC/DC
MfrMolex
Mounting TypeThrough Hole
Number of Circuits14
Number of Contacts14
Number of Positions14
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
OrientationVertical
Overall Contact Length0.510" (12.95mm)
PackagingTray
Part # Aliases0901301214
Part StatusActive
Pitch2.54 mm, 2.54 mm (0.100.
Pitch - Mating0.100" (2.54mm)
Plating MaterialGold
Primary TypeBoard Mount
Product CategoryHeaders & Wire Housings
Product TypeHeaders
Row Spacing - Mating0.100" (2.54mm)
Series90130 Series, 90130
ShroudingShrouded - 4 Wall
Special FeaturesNot Low-Halogen
StandardsCSA Certified; UL E29179
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder
Termination StyleThrough Hole
TradenameC-Grid
TypeVertical Header, Shroud.
Voltage Rating350 VAC/DC, -
