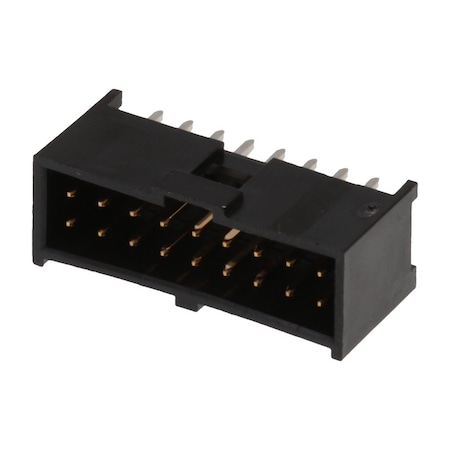

90130-1218, Conn Shrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole C-Grid III Tray (25 Items)
- Brand: Molex / Waldom
- PartNumber: 90130-1218
- Model: 90130-1218
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 901301218 |
| Alternate Part No. | 538-90130-1218 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Male Pin |
| Contact Finish - Mating | 15.0?in (0.38?m) |
| Contact Finish - Post | Brass |
| Contact Finish Thicknes. | Tin |
| Contact Finish Thicknes. | Automotive, General Pur. |
| Contact Length - Mating | 0.114" (2.90mm) |
| Contact Length - Post | 0.510" (12.95mm) |
| Contact Material | Polyester, Glass Filled. |
| Contact Plating | Gold |
| Contact Shape | Gold |
| Contact Type | 0.100" (2.54mm) |
| Current Rating | 3 A |
| Current Rating (Amps) | - |
| Family Name | C-Grid III |
| Fastening Type | 0.266" (6.75mm) |
| Features | - |
| Housing Material | Polyester |
| Ingress Protection | UL94 V-0 |
| Insulation Color | - |
| Insulation Height | Square |
| Insulation Material | - |
| Manufacturer | Molex |
| Manufacturer Part No. | 90130-1218 |
| Mated Stacking Heights | 118.1?in (3.00?m) |
| Material Flammability R. | Black |
| Mfr | Molex |
| Mounting Type | Solder |
| Number of Circuits | 18 |
| Number of Contacts | 18 |
| Number of Positions | 18, 2 |
| Number of Positions Loa. | Board to Cable/Wire |
| Number of Rows | 2, 0.100" (2.54mm) |
| Operating Temperature | - |
| Orientation | Vertical |
| Overall Contact Length | 0.429" (10.90mm) |
| Package | Active |
| Packaging | Tray |
| Part # Aliases | 0901301218 |
| Part Status | Header |
| Pitch | 2.54 mm, 2.54 mm (0.100. |
| Pitch - Mating | 18 |
| Plating Material | Gold |
| Primary Type | Board Mount |
| Product Category | Headers & Wire Housings |
| Product Type | Headers |
| Row Spacing - Mating | All |
| Series | 90130 Series, 90130, Tr. |
| Shrouding | Through Hole |
| Special Features | Not Low-Halogen |
| Style | Shrouded - 4 Wall |
| Termination | Latch Holder |
| Termination Style | Through Hole |
| Tradename | C-Grid |
| Type | Vertical Header, Shroud. |
| Voltage Rating | 350 VAC/DC, - |
