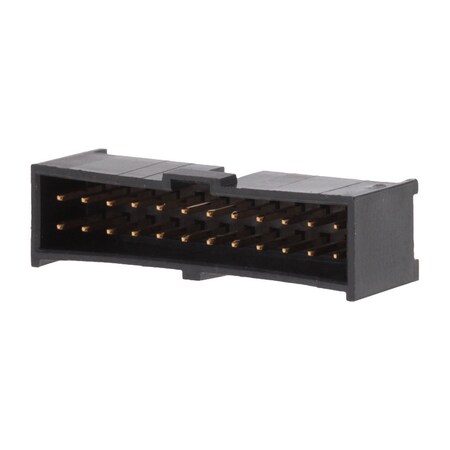

Molex / Waldom 90130-1224 Connector Headers and PCB Receptacles
- Brand: Molex / Waldom
- PartNumber: 90130-1224
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 901301224 |
| Applications | Automotive, General Pur. |
| Base Product Number | 90130 |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Header, Male Pin |
| Contact Finish | Gold Plated |
| Contact Finish - Mating | 15.0?in (0.38?m), Gold |
| Contact Finish - Post | Brass, Tin |
| Contact Finish Thicknes. | Tin, 15.0?in (0.38?m) |
| Contact Finish Thicknes. | 118.1?in (3.00?m), Auto. |
| Contact Length - Mating | 0.114" (2.90mm), 0.266". |
| Contact Length - Post | 0.114" (2.90mm), 0.510". |
| Contact Material | Polyester, Glass Filled. |
| Contact Plating Thickne. | 0.381 ?m |
| Contact Shape | Square, Gold |
| Contact Type | Male Pin, 0.100" (2.54m. |
| Current Rating | 3 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER VERT 24POS . |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | 23-0901301224-ND |
| Family Name | C-Grid III |
| Fastening Type | Latch Holder, 0.266" (6. |
| Features | - |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 2.54 mm |
| Ingress Protection | UL94 V-0, - |
| Insulation Color | Black, - |
| Insulation Height | Square, 0.429" (10.90mm) |
| Insulation Material | Polyester, Glass Filled. |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 0901301224 |
| Manufacturer Standard L. | 20 Weeks |
| Mated Stacking Heights | 118.1?in (3.00?m), - |
| Material | Polyester |
| Material Flammability R. | UL94 V-0, Black |
| Max. Temp. | 235?C |
| Max. Voltage | 350V AC/DC |
| Mfr | Molex |
| Mounting Type | Solder, Through Hole |
| Number of Circuits | 24 |
| Number of Contacts | 24 |
| Number of Positions | 24, 2 |
| Number of Positions Loa. | All, Board to Cable/Wire |
| Number of Rows | 2, 0.100" (2.54mm) |
| Operating Temperature | - |
| Orientation | Vertical |
| Overall Contact Length | 0.510" (12.95mm), 0.429. |
| Package | Active, Tray |
| Package Quantity | 1 |
| Part Status | Header |
| Pitch | 2.54 mm (0.100") |
| Pitch - Mating | 24, 0.100" (2.54mm) |
| Plating Material | Gold |
| Primary Type | Board Mount |
| Product Status | Active |
| Row Spacing - Mating | All, 0.100" (2.54mm) |
| Series | 90130 Series, Tray, C-G. |
| Shrouding | Through Hole, Shrouded . |
| Special Features | Not Low-Halogen |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Cable/Wire, Sh. |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
| Termination | Latch Holder, Solder |
| Type | Header |
| Voltage Rating | - |
