Molex / Waldom 90130-1234

mpn0901301234
brandname: Molex
manufacturername: Molex

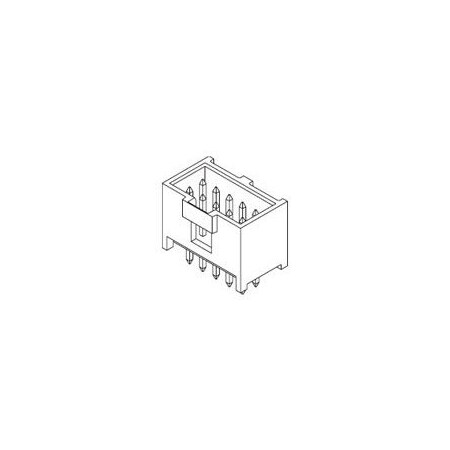

90130-1234, Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole C-Grid III Tray (10 Items)

90130-1234, Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole C-Grid III Tray (10 Items)

zoom

Brand: Molex / Waldom
PartNumber: 90130-1234
Model: 90130-1234
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	901301234
Alternate Part No.	538-90130-1234
Applications	Automotive, General Pur.
Brand	Molex
Color	Black
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Plating	Gold
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Family Name	C-Grid III
Fastening Type	Latch Holder
Features	-
Housing Material	Polyester
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.429" (10.90mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Part No.	90130-1234
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	34
Number of Contacts	34
Number of Positions	34
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.510" (12.95mm)
Packaging	Tray
Part # Aliases	0901301234
Part Status	Active
Pitch	2.54 mm, 2.54 mm (0.100.
Pitch - Mating	0.100" (2.54mm)
Plating Material	Gold
Primary Type	Board Mount
Product Category	Headers & Wire Housings
Product Type	Headers
Row Spacing - Mating	0.100" (2.54mm)
Series	90130 Series, 90130
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Style	Board to Cable/Wire
Termination	Solder
Termination Style	Through Hole
Tradename	C-Grid
Type	Header, Shrouded
Voltage Rating	350 VAC/DC, -

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	90130-1234	2.83	1	35		MOLEX / WALDOM		2.83 @ 1
	Newark	60H4334	3.66	2800	27		MOLEX		3.66 @ 2800
	Waldom	MOLEX 90130-1234	3.68	15	2603		MOLEX		3.68 @ 15
	jensentools.com	10198232	4.17	1	2393		Molex		4.17 @ 1
	us.rs-online.com	70373686	5.56	1	27		Molex Incorporated		5.56 @ 1
	Hotenda	H1300393	5.73	1	27		Molex		5.73 @ 1
	Digi-Key	WM8258-ND	6.0	1	27		Molex		6.0 @ 1
	swatee.com	90130-1234	7.16	1	9		Molex		7.16 @ 1
	RS Delivers	670-3323P	9.1944	1	60		Molex		9.1944 @ 1
	AmazonTP	B07QQFQV3K	63.76	1	27	1	Molex / Waldom		63.76 @ 1
	Zoro	G2752693	109.8	1	27		Molex		109.8 @ 1
