Attributes
| Key ^ | Value |
|---|---|
| Base Product Number, Series | 201606 |
| Category | Connectors, Interconnects |
| Circuits (Loaded), Number of Levels, Number of Positions, Number of Rows, Package Quantity | 1 |
| Color - Resin | Grey |
| Current - Maximum per Contact | 230.0A |
| Description | HIGH CURRENT UNIVERSAL CLAMP TER |

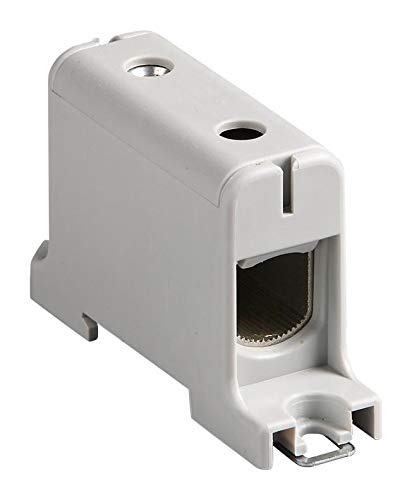

| Detailed Description | 1 Position Terminal Block Gray Universal Clamp 24.3mm |
| Digi-Key Part Number | WM17287-ND |
| Entry Angle | Horizontal |
| Features, Material Flammability Rating, Stripping Length | - |
| Height (Max) | 1.929" (49.00mm) |
| Housing Color | Gray |
| Length | 3.370" (85.60mm) |
| Lock to Mating Part | None |
| Manufacturer Product Number | 2016060620 |
| Manufacturer Standard Lead Time | 15 Weeks |
| Manufacturer, Mfr | Molex |
| Material - Insulation | Polyamide (PA), Nylon |
| Material - Metal | Aluminum |
| Material - Plating Mating, Material - Plating Termination | Tin |
| Material - Resin | Polyamide |
| Mounting Type | DIN Rail or Panel Mount |
| Operating Temperature | -40?C ~ 125?C |
| Orientation | Vertical |
| Package | Bulk |
| Panel Mount | Screws |
| Product Status | Active |
| Stackable | No |
| Temperature Range - Operating | -40? to +105?C |
| Terminal - Width | 24.3mm |
| Termination Interface: Style, Termination Style | Screw |
| Type | Universal Clamp |
| UL | E48521 |
| Voltage - Maximum | 600V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 4/0-6 AWG |
| Wire Gauge or Range - mm? | 13.3-107mm? |
| Wire Size AWG | 2(2-6), 4/0-4, 6+6+6 |
| Wire Size mm? | 13.30+13.30+13.30, 2(13.30-33.60), 21.00-107.00 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Waytek | 47185 | 13.33 | 13.33 | 1 | 145 | Molex | 13.33 @ Qty: 1+ | |||
 | Digi-Key | 7932031 | 14.82 | 14.82 | 1 | 150 | Molex | 14.82 @ Qty: 1+ | ||
 | Zoro | G005797636 | 74.25 | 193.05 | 5 | In Stock | Molex | 74.25 @ Qty: 5+ |
