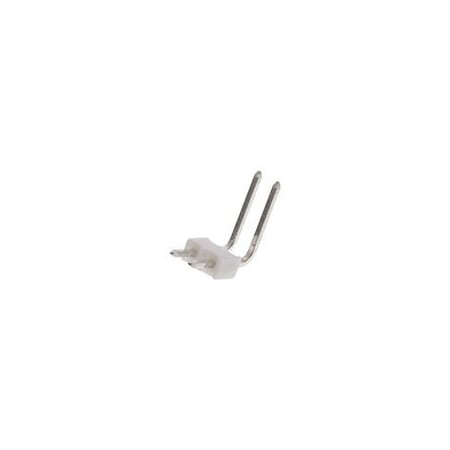

Headers & Wire Housings R/A PCB HDR 2P TIN PLATING (1 piece)
- PartNumber: 22-05-2021
- Model: 22052021
- PackageQuantity: 1
- Manufacturer: Molex
- Label: Molex
Attributes
| Key | Value |
|---|
| Agency Approvals | CSA ; UL |
| Alternate Mfr Part Numb. | A-4094-02A197 |
| Angle | Right Angle |
| Applications | Automotive, General Pur. |
| Base Product Number | 002205 |
| Category | Connectors, Interconnec. |
| Color | White |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Length - Mating | 0.369" (9.37mm) |
| Contact Length - Post | 0.124" (3.15mm) |
| Contact Material | Brass, - |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 4 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER R/A 2POS 2.. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM4100-ND |
| Family Name | KK 254 |
| Fastening Type | Push-Pull |
| Features | - |
| Housing Material | Nylon |
| Ingress Protection | - |
| Insulation Color | White |
| Insulation Height | 0.130" (3.30mm) |
| Insulation Material | Polyamide (PA), Nylon |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 0022052021 |
| Manufacturer Standard L. | 40 Weeks |
| Mated Stacking Heights | - |
| Material Flammability R. | UL94 V-0 |
| Mfr | Molex |
| Mounting Hole Size | 0.04 in |
| Mounting Type | Through Hole, Right Ang. |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Positions Loa. | All |
| Number of Rows | 1 |
| Operating Temperature | 0 to +75 ?C, - |
| Orientation | Right Angle |
| Overall Contact Length | - |
| Overall Length | 0.19 " |
| Package | Bulk |
| Package Quantity | 1 |
| Pin Length | 0.124 " |
| Pin Spacing | 0.1 in |
| Pitch | 2.54 mm (0.100") |
| Pitch - Mating | 0.100" (2.54mm) |
| Plating Material | Tin |
| Primary Type | Board Mount |
| Product Header | Single Row Right Angle . |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | KK254, 4094, 4094 Series |
| Shrouding | Unshrouded |
| Special Features | Low-Halogen |
| Style | Board to Board or Cable |
| Termination | Solder, Through Hole |
| Type | Header |
| Voltage Rating | 250 V, - |
