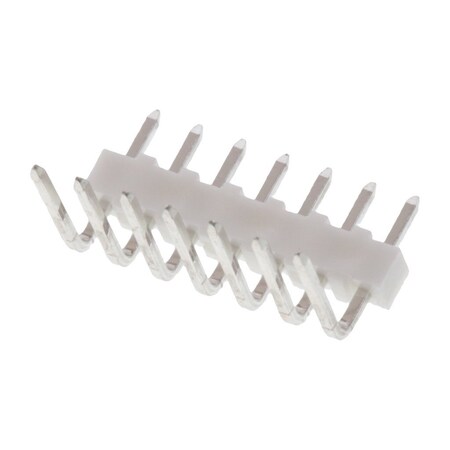

Molex Board-Board Connector Header, 7 Position, 1Row - 22-05-2071

mpn22052071
brandname: MOLEX
manufacturername: MOLEX

Molex Board-Board Connector Header, 7 Position, 1Row - 22-05-2071

Model: 22-05-2071
PackageQuantity: 1
Manufacturer: Molex

Attributes

Key	Value
Alternate Mfr Part Numb.	A-4094-07A197
Application	Board-to-Board ; Signal.
Applications	Automotive, General Pur.
Base Product Number	002205
Category	Connectors, Interconnec.
Color	White
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.369" (9.37mm)
Contact Length - Post	0.124" (3.15mm)
Contact Material	-
Contact Shape	Square
Contact Type	Male Pin
Current Rating	4 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 7POS 2..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM4105-ND
Family Name	KK 254
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	White
Insulation Height	0.130" (3.30mm)
Insulation Material	Polyamide (PA), Nylon
Manufacturer	Molex
Manufacturer Product Nu.	0022052071
Manufacturer Standard L.	55 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	7
Number of Contacts	7
Number of Positions	7
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Plating Material	Tin
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	-
Series	KK254, 4094, 4094 Series
Shrouding	Unshrouded
Special Features	Low-Halogen
Style	Board to Board or Cable
Termination	Solder, Through Hole
Type	Right Angle Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Arrow	22-05-2071	0.26	1	3131		Molex		0.26 @ 1
	Heilind Electronics	22-05-2071	0.40586	5	246		MOLEX		0.40586 @ 5
	Power and Signal Group	0022052071	0.4278	4000	246		Molex		0.4278 @ 4000
	Onlinecomponents.com	22-05-2071	0.428	1	18092		MOLEX / WALDOM		0.428 @ 1
	Waldom	MOLEX 22-05-2071	0.43	150	1903		MOLEX		0.43 @ 150
	Component Electronics	640A-7J	0.77	1	129		Molex		0.77 @ 1
	Newark	01AH8184	1.1	1	90		MOLEX		1.1 @ 1
	Digi-Key	26655	1.2	1	2772		Molex		1.2 @ 1
	us.rs-online.com	70373047	1.21	1	100		Molex Incorporated		1.21 @ 1
	Radwell	22-05-2071	1.4	1	129		MOLEX		1.4 @ 1
	RS Delivers	479-024P	1.5636	1	570		Molex		1.5636 @ 1
	TME	MX-22-05-2071	1.607	1	62		MOLEX		1.607 @ 1
	AmazonTP	B005T7EKMI	5.99	1	129	2	MOLEX		5.99 @ 1
	Zoro	G2765278	117.0	150	90		Molex		117.0 @ 150
